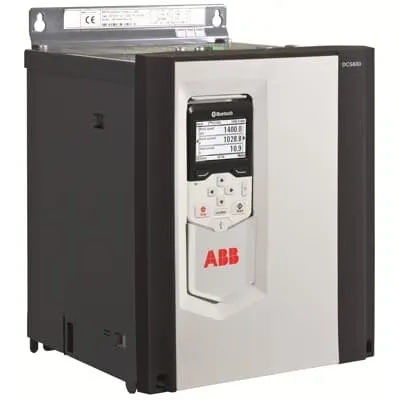

ABB 3ADT218519S0231 DC Converter Module - 400 VAC 250 A
Part Number: 3ADT218519S0231
Quick Summary
ABB 3ADT218519S0231 DC Converter Module powers high-current DC paths in industrial automation. Sourcing a reliable 400 VAC, 250 A power module that fits compact control panels is a common challenge for engineers. It incorporates IEC 60529/EN 60529 IP00 protection, IEC 60947-1 compatibility, and robust 50/60 Hz operation. Designed for panel integration and ABB DCS880 ecosystems, it delivers reliable power with a compact footprint. Industrial engineers gain predictable performance, reduced lifecycle costs, and faster delivery through stocked warehouses. DEAPR quotes a 35-day lead time, while SGIND002 indicates zero-day availability at SGIND002EXPU warehouses. The product is actively stocked and not made to order, supporting quick procurement for ongoing projects.
Product Information
Extended Description
3ADT218519S0231 ABB: DC Converter;
Type: DCS880-S02-0250-04;
4Q Converter;
Voltage: 400 VAC;
Current: 0250 A;
Weight: 16kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-0250-04;
4Q Converter;
Voltage: 400 VAC;
Current: 0250 A;
Weight: 16kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
16 kg
Product Net Depth / Length
271 mm
Product Net Height
370 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
390 mm
Package Level 1 Height
350 mm
Package Level 1 Width
390 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
55 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H2
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
High-current capability delivers up to 250 A at 400 VAC, enabling direct power supply for heavy DC links and drive inverters. This reduces wiring stages and thermal losses in control cabinets, boosting overall system efficiency. In applications such as machine drives, servo systems, and process control, engineers gain faster response and tighter current regulation. 4Q converter topology supports four-quadrant operation, allowing bidirectional power flow and regenerative braking. The business impact is improved energy recovery, reduced aging of mechanical systems, and smoother control of motor loads under surge conditions. In practice, this is ideal for conveyor systems, packaging lines, and CNC drives where braking energy must be safely absorbed. Compact frame size H2 with a net weight of 16 kg and dimensions of 271 x 370 x 270 mm simplifies panel installation and retrofit projects. This supports faster commissioning and easier service access, which reduces downtime during upgrades. The module integrates with ABB DCS880 controllers and common 400 VAC bus architectures, accelerating deployment in existing facilities. IP00 protection per IEC 60529 provides basic enclosure protection, enabling installation in controlled environments with appropriate enclosures. Operating humidity ranges from 5 to 95% RH and a sound level of 55 dB(A) help maintain predictable performance in busy plant rooms. When higher ingress protection is required, plan enclosure-rated installations accordingly. Three analog inputs and two analog outputs offer flexible local sensing, control, and feedback without extra hardware. This reduces wiring complexity and supports on-board tuning for stable operation. The 50/60 Hz compatibility ensures reliable operation across global facilities with varying supply standards. Stocking and procurement considerations: the product is Active and available from multiple warehouses, with DEAPR reporting a 35-day lead time and SGIND002 reporting immediate availability. This combination supports faster project timelines and consistent supply for maintenance budgets.
Get a Quick Quote for a ABB 3ADT218519S0231
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ADT218519S0231?
Enquire Now
FAQs
Yes. The module is designed as a DCS880-compatible DC converter that operates at 400 VAC and provides 250 A, making it suitable for integration with ABB DCS880 controllers and standard 400 VAC panel bus architectures.
Key specs include 400 VAC input, 250 A current, 50/60 Hz operation, and a weight of 16 kg. The unit features 3 analog inputs and 2 analog outputs, with an IP00 protection level and operating humidity from 5% to 95% RH.
Ideal for machine drives, servo systems, and process control in manufacturing, packaging, and automation lines where high-current DC power and reliable control are critical.
It provides IP00 protection per IEC 60529/EN 60529 and is compatible with IEC 60947-1 standards. The unit is designed for robust industrial environments with defined operating humidity and noise levels.
Stock is available from multiple warehouses; DEAPR quotes a 35-day lead time while SGIND002 indicates zero-day availability. The product is Active and not made to order, with a warranty policy stating warranty returns must be handled through standard channels.
