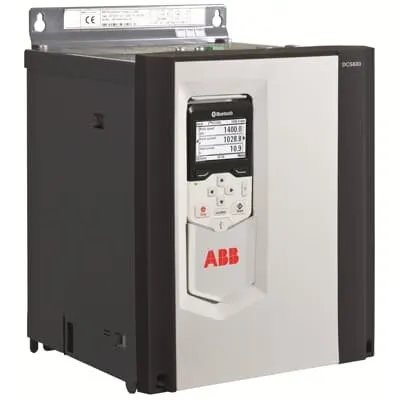

ABB 3ADT218519S0242 DC Converter Module - 525 VAC IP00
Part Number: 3ADT218519S0242
Quick Summary
ABB 3ADT218519S0242 DC Converter Module enables reliable power conversion for industrial drives and switchgear. Maintaining uptime under high-load and fluctuating inputs can disrupt production, and this unit addresses that by delivering stable 525 VAC operation at 300 A. It complies with IEC 60529 and EN 60529 with IP00 protection and aligns with IEC 60947-1 for safe electrical performance. Designed for the ABB DCS880 family and broader industrial automation architectures, it offers scalable control, easy integration, and predictable maintenance costs. With stock available from multiple warehouses and a clear lead time, this DC converter module supports fast procurement and optimized project timelines.
Product Information
Extended Description
3ADT218519S0242 ABB: DC Converter;
Type: DCS880-S02-0300-05;
4Q Converter;
Voltage: 525 VAC;
Current: 0300 A;
Weight: 16kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-0300-05;
4Q Converter;
Voltage: 525 VAC;
Current: 0300 A;
Weight: 16kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
16 kg
Product Net Depth / Length
271 mm
Product Net Height
370 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
390 mm
Package Level 1 Height
350 mm
Package Level 1 Width
390 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
55 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H2
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Four-quadrant (4Q) DC conversion enables bidirectional power flow, allowing regenerative braking and smoother torque control. Business impact: reduces energy waste, lowers cooling requirements, and improves overall system efficiency in heavy drive applications. Application: ideal for industrial drives, CNC machines, and servo systems that demand fast response and energy recovery. The 525 VAC input and 300 A rating support high-power operation, reducing voltage drop and thermal stress in demanding loads. Business impact: enhanced reliability and reduced maintenance interruptions. Application: large motors, presses, and material-handling equipment in automation lines. Three analog inputs and two analog outputs streamline control integration, decreasing external I/O costs and simplifying wiring. Business impact: faster commissioning and tighter control loops. Application: real-time motor feedback, sensor signals, and control signals for DCS880 deployments. The compact H2 frame and dimensions (271 mm L × 370 mm H × 270 mm W) with a 16 kg weight ease installation in existing panels and cabinets, improving installer productivity. Business impact: lower installation time and space requirements. Application: retrofit projects and new builds in industrial automation environments. IP00 protection and IEC/EN 60529 alignment provide fundamental environmental robustness for auxiliary terminals, while IEC 60947-1 guidelines support safe electrical performance. Business impact: compliance assurance and risk mitigation in plant operations. Application: certified, safe integration into control systems with minimal risk. Stock and lead times (35 days) and availability from multiple warehouses support predictable procurement, reducing project delays. Application: project planning and global sourcing for automation upgrades.
Get a Quick Quote for a ABB 3ADT218519S0242
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ADT218519S0242?
Enquire Now
FAQs
Yes. The 3ADT218519S0242 is a DCS880 DC Converter Module designed for ABB systems and broader industrial automation architectures. It fits standard H2 frame configurations and integrates with existing 3 analog inputs and 2 analog outputs. Verify panel space and ensure correct wiring for 525 VAC input and 50/60 Hz operation before commissioning.
Key specs include a 525 VAC input, 300 A current rating, four-quadrant (4Q) operation, 50/60 Hz capability, and a weight of 16 kg with dimensions of 271 mm (L) × 370 mm (H) × 270 mm (W). It supports an ABB DCS880-S02-0300-05 configuration and provides 3 analog inputs and 2 analog outputs for control.
Ideal for industrial drives, servo systems, CNC machines, and heavy equipment requiring reliable, high-current DC power with regenerative capability. It suits automation upgrades, energy recovery in braking scenarios, and applications demanding tight control loops within ABB or compatible control architectures.
The module adheres to IEC 60529 and EN 60529 standards with IP00 protection for auxiliary terminals and is aligned with IEC 60947-1. This combination supports safe operation in typical factory environments and ensures consistent electrical performance across global installations.
Stock is available from multiple warehouses with a lead time of 35 days. Warranty terms indicate that products under warranty must be returned. For ROI, plan around reduced downtime, improved energy efficiency from regenerative capability, and simpler integration with existing DCS880-based automation platforms.
