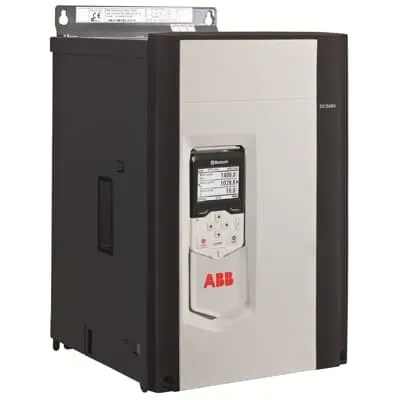

ABB 3ADT218520S0213 DC Converter Module - 600 VAC
Part Number: 3ADT218520S0213
Quick Summary
ABB 3ADT218520S0213 DC Converter Module is a high-capacity power module designed for industrial automation and drive systems. This 4Q converter delivers up to 320 A at 600 VAC, packaged in a compact 25 kg enclosure to simplify installation in control panels. When space is constrained or heat dissipation is critical, the DCS880-S02-0320-06 configuration helps streamline wiring and system layout. It aligns with IEC 60529 (IP00) and IEC 60947-1 standards, offering reliable protection and predictable performance across 50/60 Hz applications. By choosing this ABB module, integrators gain modularity, lower maintenance overhead, and a clearer path to scalable power control in motor drives and DC bus applications.
Product Information
Extended Description
3ADT218520S0213 ABB: DC Converter;
Type: DCS880-S02-0320-06;
4Q Converter;
Voltage: 600 VAC;
Current: 0320 A;
Weight: 25kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-0320-06;
4Q Converter;
Voltage: 600 VAC;
Current: 0320 A;
Weight: 25kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
25 kg
Product Net Depth / Length
317 mm
Product Net Height
460 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
318 mm
Package Level 1 Height
318 mm
Package Level 1 Width
520 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
60 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H3
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature → Four-quadrant DCS880-S02-0320-06 design enables bidirectional power flow and regenerative braking, reducing energy waste and improving drive response. Business Impact → Improves controllability of motor drives and DC bus regulation in industrial automation environments, enabling faster commissioning and safer energy recovery. Application → Ideal for manufacturing lines and test benches where bidirectional power support is needed. Feature → 600 VAC input with a 320 A current rating supports heavy-load DC systems. Business Impact → Delivers robust, high-current performance for power electronics in drive trains, increasing system uptime and reducing the number of parallel modules required. Application → Suitable for large motor drives and DC bus applications in automation plants. Feature → IP00 protection and compliance with IEC 60529/ EN 60529 and IEC 60947-1. Business Impact → Enhances safe operation inside control panels, with clear installation guidelines and reduced risk of dust ingress. Application → Matches harsh factory environments where panel integrity is critical. Feature → Compact form factor (317 mm x 460 mm x 270 mm) and 25 kg weight. Business Impact → Eases mounting within standard enclosures, lowers installation time, and simplifies service access for routine maintenance. Application → Fits in crowded control panels and modular racks common in modern factories. Feature → 3 analog inputs and 2 analog outputs with 50/60 Hz compatibility. Business Impact → Improves feedback control, monitoring, and integration with broader automation architectures. Application → Integrates with ABB drive systems and other power electronics for precise regulation and diagnostics. Feature → Product name DCS880 DC Converter Module with Type DCS880-S02-0320-06 configuration. Business Impact → Provides a well-documented, supportable platform for scalable power conversion that reduces risk during upgrades. Application → Suitable for both new builds and retrofits in industrial automation projects.
