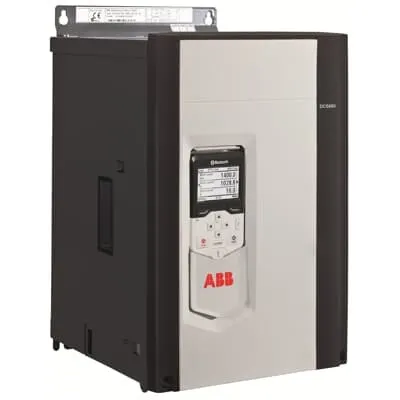

ABB 3ADT218520S0231 DC Converter - 400 VAC 450 A IP00
Part Number: 3ADT218520S0231
Quick Summary
DC Converter ABB 3ADT218520S0231 provides high-current power conversion for industrial drive systems. Engineers rely on robust performance while integrating high-power modules in limited panel space. This unit complies with IEC 60529/IP00, EN 60529, and IEC 60947-1 standards, underscoring safety and reliability in demanding environments. Designed to fit ABB’s DCS880 ecosystem, it enables efficient control of motor drives and automation lines. The combination of 400 VAC input and 450 A current supports heavy-load applications across manufacturing, packaging, and process industries, delivering predictable operation with a compact footprint and scalable integration with existing I/O and control schemes.
Product Information
Extended Description
3ADT218520S0231 ABB: DC Converter;
Type: DCS880-S02-0450-04;
4Q Converter;
Voltage: 400 VAC;
Current: 0450 A;
Weight: 25kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-0450-04;
4Q Converter;
Voltage: 400 VAC;
Current: 0450 A;
Weight: 25kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
25 kg
Product Net Depth / Length
317 mm
Product Net Height
460 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
318 mm
Package Level 1 Height
318 mm
Package Level 1 Width
520 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
60 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H3
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature → Business Impact → Application: The DCS880-S02-0450-04 DC Converter Module operates with 400 VAC input and delivers 450 A, enabling high-current drive control while maintaining system stability. This translates to reduced motor stress, longer drive life, and improved line throughput in automation cells. Application: Suitable for heavy-load conveyors, robotic cells, and process lines where peak power demand occurs without compromising control accuracy. Feature → Business Impact → Application: The 4Q converter configuration provides finer PWM control and smoother DC output, improving motor performance and reducing acoustic noise. Application: Ideal for packaging lines and material handling where precise speed regulation is critical. Feature → Business Impact → Application: Compact footprint (317 × 270 × 460 mm) and frame size H3 simplify panel integration, accelerate installation, and save enclosure space. Application: Panel builders benefit from easier mounting and wiring in tight automation cabinets. Feature → Business Impact → Application: 3 analog inputs and 2 analog outputs enable direct sensor and actuator integration, reducing external I/O routing and simplifying control logic. Application: Drives, CNC interfaces, and process controllers can leverage closer proximity I/O for faster response and improved diagnostics. Feature → Business Impact → Application: IP00 protection and compliance with IEC 60529, EN 60529, and IEC 60947-1 standards enhance safety and regulatory alignment, reducing risk during commissioning. Application: Use in regulated manufacturing environments where safety certification and predictable performance are required. Feature → Business Impact → Application: Stock availability at multiple warehouses and clear lead times (Poland 35 days; SG 0 days) support faster procurement and lean supply chains. Application: Original equipment manufacturers and panel integrators can plan builds and reduce downtime with reliable sourcing. Additional notes: The module weighs 25 kg and is designed as a drop-in component for ABB DCS880 configurations, with 3 analog inputs and 2 outputs for streamlined control.
