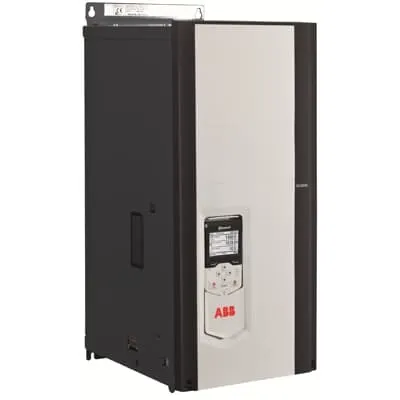

ABB 3ADT218521S0121 DC Converter - 2Q 400 VAC IP00
Part Number: 3ADT218521S0121
Quick Summary
DC Converter for industrial control, the ABB 3ADT218521S0121 enables robust power conversion for heavy machinery and automation systems. Engineers often face bulky gear, long lead times, and integration gaps that disrupt projects; this module addresses those by delivering compact, high-capacity DC conversion with straightforward ABB integration. This product complies with IEC 60529/IP00, EN 60529, and IEC 60947-1 standards, providing reliable protection in demanding environments. In the broader ABB DCS880 family, it supports scalable automation while reducing downtime and energy waste, making it a valuable core component for modern drive systems and control panels.
Product Information
Extended Description
3ADT218521S0121 ABB: DC Converter;
Type: DCS880-S01-0610-04;
2Q Converter;
Voltage: 400 VAC;
Current: 0610 A;
Weight: 38kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S01-0610-04;
2Q Converter;
Voltage: 400 VAC;
Current: 0610 A;
Weight: 38kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
38 kg
Product Net Depth / Length
352 mm
Product Net Height
645 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
460 mm
Package Level 1 Height
470 mm
Package Level 1 Width
790 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
66-70 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H4
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature → Business Impact → Application. The DCS880-based DC Converter module delivers 400 VAC input and 0610 A capacity, enabling high-load motor drive control with predictable performance. The result is improved system efficiency, reduced heat buildup, and lower integration risk, ideal for manufacturing lines and packaging plants. The 38 kg weight and H4 frame support robust, vibration-resistant installation in electrical cabinets, minimizing panel space while simplifying retrofits in older machines. With 3 analog inputs and 2 analog outputs, engineers gain flexible sensing and command capabilities, enabling precise speed and torque control in process lines. The device’s IEC 60529 IP00 protection and EN 60529 compliance provide safe operation and easier maintenance in factory environments. Compatibility with standard ABB components ensures streamlined procurement, maintenance, and long-term ROI in industrial automation projects.
Get a Quick Quote for a ABB 3ADT218521S0121
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ADT218521S0121?
Enquire Now
FAQs
Yes. It is designed for the ABB DCS880 family, employing the DCS880-S01-0610-04 2Q converter configuration. It accepts 400 VAC input and delivers up to 0610 A. With a 38 kg weight and an H4 frame, mounting follows standard ABB panel practices. Check stock at DEAPREXPU and SGIND002EXPU for rapid sourcing.
Key specifications include 400 VAC input, 0610 A current capability, and a 2Q converter topology. It offers 3 analog inputs and 2 analog outputs for feedback and control, with IP00 protection for standard industrial environments. The unit is compatible with 50/60 Hz operation and ABB drive interfaces, supporting stable performance in demanding lines.
Ideal for heavy machinery drive systems in packaging, plastics, and metalworking lines. The 38 kg module with a compact footprint fits tight cabinets, while the 400 VAC/0610 A output supports high-torque motor control. The 3 AI / 2 AO configuration enables precise speed and torque regulation across dynamic loads in production environments.
The unit complies with IEC 60529/IP00 protection, EN 60529, and IEC 60947-1 for safety and protection. It aligns with standard ABB interfaces and is associated with tariff code 85044083 for procurement. These certifications support safe operation, regulatory compliance, and smoother integration in plant environments.
Maintenance follows ABB service practices, with warranty claims requiring return of the unit under warranty. By enabling reliable 400 VAC power delivery and scalable integration in DCS880 drives, operators benefit from reduced downtime, extended drive life, and lower total cost of ownership through improved efficiency and faster MTTR.
