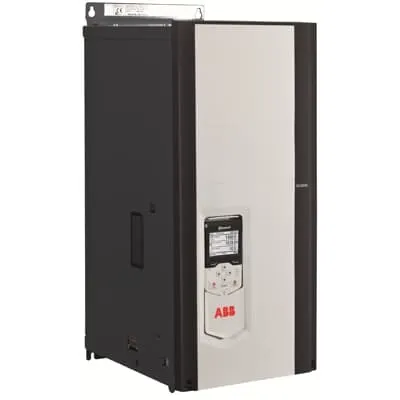

ABB 3ADT218521S0222 DC Converter Module - IP00
Part Number: 3ADT218521S0222
Quick Summary
DC Converter module powers ABB DCS880 systems by delivering robust 525 VAC to DC drives in heavy automation. Operators face downtime and complex configurations; this unit simplifies integration with plug-in compatibility and clear parameterization. Key certifications include IP00 protection, CE conformity, and compliance with IEC/EN standards for safe industrial operation. This module also supports cost-efficient maintenance and scalable integration alongside 3AD and 4Q converter configurations. With a weight of 38 kg and a robust enclosure, installation is straightforward in control cabinets and machinery rooms. Lead time is about 35 days per DEAPR, and stock is available across DEAPREXPU warehouses to support urgent projects. The product name DCS880 DC Converter Module underpins reliable power conversion for 4Q architectures, with 525 VAC input and 680 A rating.
Product Information
Extended Description
3ADT218521S0222 ABB: DC Converter;
Type: DCS880-S02-0680-05;
4Q Converter;
Voltage: 525 VAC;
Current: 0680 A;
Weight: 38kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-0680-05;
4Q Converter;
Voltage: 525 VAC;
Current: 0680 A;
Weight: 38kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
38 kg
Product Net Depth / Length
352 mm
Product Net Height
645 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
460 mm
Package Level 1 Height
470 mm
Package Level 1 Width
790 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
66-70 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H4
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature → Business Impact → Application: The 525 VAC input and 680 A rating enable high-power DC drives, reducing alternative wiring and enabling tighter motor control in heavy machinery. This 4Q converter delivers improved efficiency and performance consistency, cutting downtime in packaging lines and metal forming. Application: Use in ABB DCS880-based systems powering large servo and DC motors with demanding load profiles. Feature → Business Impact → Application: IP00 protection and CE conformity reduce field risk and simplify compliance audits, supporting installation in standard factory environments. Application: Suitable for control cabinets with restricted ingress protection requirements and in environments where safety certifications are essential. Feature → Business Impact → Application: 38 kg weight and H4 frame size simplify mounting in existing enclosures and minimize cabinet rework. Application: Ideal for retrofit projects and new lines with space constraints. Feature → Business Impact → Application: 3 analog inputs and 2 analog outputs enable robust feedback and closed-loop control, improving process stability. Application: Servo control, speed regulation, and torque management in continuous production lines. Feature → Business Impact → Application: 50/60 Hz compatibility ensures seamless operation across global facilities. Application: Global deployment in automotive, plastics, and metalworking plants requiring consistent performance across regions.
Get a Quick Quote for a ABB 3ADT218521S0222
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ADT218521S0222?
Enquire Now
FAQs
Yes. The module is designed for the DCS880 system and fits standard control cabinets with an H4 footprint. It accepts 525 VAC input, operates at 50/60 Hz, and provides IP00 protection, along with 3 analog inputs and 2 analog outputs to support closed-loop control. Ensure proper mounting clearance and electrical clearances per ABB guidelines.
Core specs include 525 VAC input, 680 A output, 4Q converter topology, frame size H4, weight 38 kg, 50/60 Hz operation, IP00 protection, and 3 analog inputs plus 2 analog outputs for feedback and control. These specs enable robust high-power drive applications with reliable performance.
Industries with high-power DC drive needs—such as packaging, plastics, metals processing, and heavy conveyors—benefit from the 525 VAC input and 680 A output, enabling precise motor control and improved line efficiency when integrated with ABB DCS880 systems.
The unit carries IP00 protection and CE conformity with IEC/EN standards, suitable for indoor industrial environments. It operates within ambient humidity ranges of 5–95% and delivers predictable performance with defined acoustic levels in operation.
Lead time is 35 days from DEAPR, with stock available at DEAPREXPU and SGIND002EXPU. Warranty terms indicate returns for warranty events. Minimum order quantity is 1 piece, and the product is listed as Active stock, not Made-To-Order.
