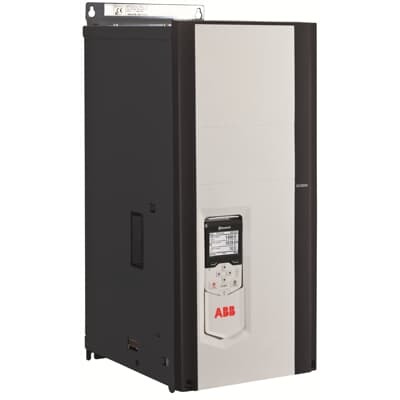

ABB 3ADT218521S0231 DC Converter - DCS880-S02-0820-04
Part Number: 3ADT218521S0231
Quick Summary
ABB 3ADT218521S0231 DC Converter is a high-capacity power conversion module for industrial automation and heavy-duty DC buses. When systems require reliable 400 VAC input and sustained current up to 820 A, operators face costly downtime and oversizing challenges. This module is designed to meet those needs with robust four-quadrant operation and a compact footprint. It aligns with IEC 60529/ EN 60529 IP00 protection and IEC 60947-1 standards, ensuring dependable operation inside properly rated enclosures. By integrating the DCS880-S02-0820-04 platform, it delivers predictable performance, easier maintenance, and improved overall equipment efficiency. For buyers, this translates to lower wiring complexity, improved energy management, and faster time-to-value in ABB-compatible control architectures.
Product Information
Extended Description
3ADT218521S0231 ABB: DC Converter;
Type: DCS880-S02-0820-04;
4Q Converter;
Voltage: 400 VAC;
Current: 0820 A;
Weight: 38kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-0820-04;
4Q Converter;
Voltage: 400 VAC;
Current: 0820 A;
Weight: 38kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
38 kg
Product Net Depth / Length
352 mm
Product Net Height
645 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
460 mm
Package Level 1 Height
470 mm
Package Level 1 Width
790 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
66-70 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H4
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature → Business Impact → Application: High-current capability (820 A) at 400 VAC enables larger loads to be driven from a single converter, reducing the need for multiple devices and simplifying wiring. This translates to measurable efficiency gains and lower CAPEX in heavy-duty motor drives and conveyor systems. Feature → Business Impact → Application: Four-quadrant operation supports bidirectional energy flow and regenerative braking, improving process control and dynamic response in presses and rolling mills. Feature → Business Impact → Application: DCS880-S02-0820-04 designation provides clear system compatibility within ABB control ecosystems, enabling streamlined commissioning and maintenance for industrial automation projects. Feature → Business Impact → Application: 3 analog inputs and 2 analog outputs enable direct control and feedback from PLCs or HMIs, reducing latency and simplifying wiring in packaging lines and material handling. Feature → Business Impact → Application: 400 VAC input and 50/60 Hz capability ensure compatibility across regional grids, supporting global manufacturing sites with consistent performance. Feature → Business Impact → Application: IP00 protection and a 38 kg body with H4 frame support easy panel installation while maintaining reliability; proper enclosure design mitigates environmental exposure in factory floors. Feature → Business Impact → Application: Availability through dual supplier options (Poland and Germany) offers flexibility in lead times (35 days or 0 days), reducing project risk and accelerating deployment. Feature → Business Impact → Application: 3D dimensions and packaging dimensions (352 mm depth, 270 mm width, 645 mm height; 460x470x790 mm package) inform mounting and clearance planning for skids, cabinets, or retrofit scenarios in automotive and process industries.
Get a Quick Quote for a ABB 3ADT218521S0231
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ADT218521S0231?
Enquire Now
FAQs
Yes. The 3ADT218521S0231 is designed as a DCS880 DC Converter Module and integrates with ABB control architectures. It uses the H4 frame size and a footprint suitable for panel mounting with standard clearances. Dimensions indicate a compact 352 mm depth, 270 mm width, and 645 mm height, with a weight of 38 kg, allowing straightforward installation in standard electrical cabinets or dedicated drive panels.
The unit operates at 400 VAC input with a rated current of 820 A. It has a sound level of 66–70 dB(A) and supports 50 Hz or 60 Hz operation, making it suitable for diverse regional power grids while maintaining predictable performance in demanding automation tasks.
This four-quadrant converter is ideal for heavy-duty motor drives, DC link power for servo systems, presses, conveyors, and other high-current applications where bidirectional energy flow, robust control, and reliable uptime are critical. Its 3 analog inputs and 2 outputs enable direct PLC/HMI integration for precise control and feedback.
The device conforms to IEC 60529/ EN 60529 IP00 protection and IEC 60947-1, aligning with standard industrial control equipment requirements. While IP00 indicates basic protection, ensure installation inside an appropriate enclosure or panel environment to safeguard against incidental contact and dust ingress. The specification also notes 50/60 Hz compatibility for global operation.
Stock is regionally available from multiple suppliers with lead times of 35 days (Poland) or 0 day (Germany). A warranty return policy states that products under warranty must be returned. For ROI, the unit reduces system complexity and wiring while delivering reliable high-current performance, contributing to lower lifecycle costs and faster project deployment.
