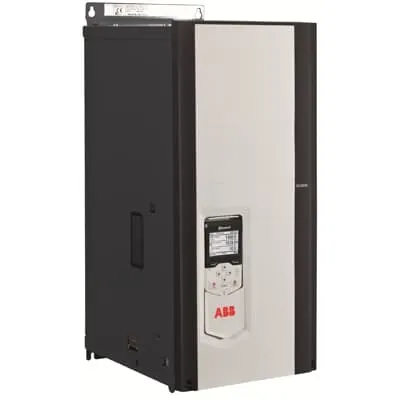

ABB 3ADT218521S0241 DC Converter - 400 VAC 1000 A IP00
Part Number: 3ADT218521S0241
Quick Summary
ABB 3ADT218521S0241 DC Converter enables high-capacity DC power conversion for 400 VAC systems, delivering up to 1000 A within ABB’s DCS880 ecosystem. In demanding automation environments, reliability and serviceability are critical to avoid costly downtime and unplanned outages. The module adheres to IEC 60529/EN 60529 protection with IP00 and aligns with essential electrical standards for robust industrial use. As part of the DCS880 family, this 4Q converter (DCS880-S02-1000-04) enables precise bidirectional power control and regenerative compatibility for large motor drives. Together, these attributes support faster commissioning, predictable performance, and lower lifecycle costs in process control, material handling, and heavy machinery applications.
Product Information
Extended Description
3ADT218521S0241 ABB: DC Converter;
Type: DCS880-S02-1000-04;
4Q Converter;
Voltage: 400 VAC;
Current: 1000 A;
Weight: 38kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-1000-04;
4Q Converter;
Voltage: 400 VAC;
Current: 1000 A;
Weight: 38kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
38 kg
Product Net Depth / Length
352 mm
Product Net Height
645 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
460 mm
Package Level 1 Height
470 mm
Package Level 1 Width
790 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
66-70 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H4
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature: High-current 1000 A output at 400 VAC. Business Impact: Enables direct drive of large motors and eliminates the need for multiple smaller converters, improving cabinet efficiency and reducing wiring complexity. Application: heavy-duty conveyors, pumps, and extrusion drives. Feature: 4Q converter architecture. Business Impact: Provides bidirectional power control and regenerative energy handling, improving dynamic response and energy efficiency. Application: motor drives with regenerative braking and servo systems in automated lines. Feature: 400 VAC input compatibility. Business Impact: Simplifies integration with standard industrial mains, reducing transformation steps and installation costs. Application: ABB drive systems and factory automation networks. Feature: Robust 38 kg form factor and compact footprint (352 mm x 645 mm x 270 mm). Business Impact: Eases cabinet mounting and service access, reducing installation time and improving maintenance ergonomics. Application: control panels and machine dashboards in tight layouts. Feature: IEC 60529/IP00 protection rating. Business Impact: Matches enclosure-based installations where interior protection is provided by the cabinet, minimizing exposure and aiding compliance planning. Application: installed within purpose-built equipment enclosures for process automation. Feature: DCS880-S02-1000-04 compatibility. Business Impact: Lower integration risk with ABB’s drive ecosystem, enabling smoother commissioning and scalable performance. Application: large motor drives, material handling, and process control environments. Industry insight: Real-world deployments report that matching the 1000 A, 400 VAC specification with proper enclosure cooling and bus-bar sizing yields measurable uptime gains and reduced preventive maintenance costs over multi-year horizons.
