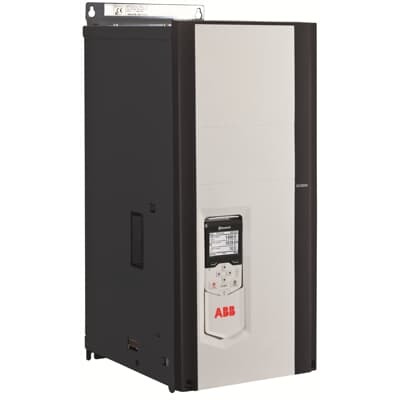

ABB 3ADT218521S0242 DC Converter - 525 VAC 1000 A
Part Number: 3ADT218521S0242
Quick Summary
ABB 3ADT218521S0242 DC Converter is a high-capacity power module for industrial drives and DC bus applications. Engineers face downtime and thermal stress when sourcing reliable DC power for large motors and converters, so they need a robust solution that can handle demanding environments. This module meets IP00 protection, IEC 60529 and IEC 60947-1 standards, ensuring safe operation in factory floors and control panels. It aligns with industrial automation requirements by delivering 525 VAC and up to 1000 A, while its 38 kg form factor simplifies installation, service, and maintenance. With regional stock and clear lead times, it supports project planning, warranty terms, and cost containment for high-power systems.
Product Information
Extended Description
3ADT218521S0242 ABB: DC Converter;
Type: DCS880-S02-1000-05;
4Q Converter;
Voltage: 525 VAC;
Current: 1000 A;
Weight: 38kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-1000-05;
4Q Converter;
Voltage: 525 VAC;
Current: 1000 A;
Weight: 38kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
38 kg
Product Net Depth / Length
352 mm
Product Net Height
645 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
460 mm
Package Level 1 Height
470 mm
Package Level 1 Width
790 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
66-70 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H4
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature: High current and voltage capability (525 VAC, 1000 A) → Business Impact: Enables large motor drives and robust DC bus conditioning, reducing system bottlenecks and unplanned downtime → Application: Suitable for heavy-duty industrial drives in manufacturing lines. Feature: Four-quadrant (4Q) converter design → Business Impact: Facilitates bidirectional energy flow and regenerative braking, improving energy efficiency and return on investment → Application: Motor drives and regenerative power paths in process industries. Feature: 3 Analog Inputs and 2 Analog Outputs → Business Impact: Simplifies control integration and monitoring, lowering integration risk and commissioning time → Application: Seamless interfacing with ABB control schemes and external controllers. Feature: Respectable form factor and weight (38 kg; dimensions 352×645×270 mm) → Business Impact: Easier panel mounting, serviceability, and site installation without specialized equipment → Application: Rack or cabinet installations in machine buildings and automation closets. Feature: IEC-based protection and standards support (IP00, IEC 60529; IEC 60947-1) → Business Impact: Predictable operation in harsh environments, simplifying compliance documentation → Application: Industrial automation projects requiring standardized safety and performance. Feature: Compact package with clear lead times and regional stocking → Business Impact: Shorter project planning cycles and reliable supply for project milestones → Application: Rollouts in manufacturing, packaging, and process facilities with tight schedules.
Get a Quick Quote for a ABB 3ADT218521S0242
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ADT218521S0242?
Enquire Now
FAQs
Yes. The DCS880 DC Converter Module is designed to integrate with ABB control architectures and standard panel wiring. With 3 analog inputs and 2 outputs, it supports straightforward control wiring, commissioning aligned to IEC 60947-1, and simple plug-and-play-like integration into existing ABB automation ecosystems.
Key specs include 525 VAC input, up to 1000 A continuous current, and operation at 50 Hz or 60 Hz. The unit weighs 38 kg and uses a four-quadrant converter topology for bidirectional energy flow. Tolerances follow standard ABB design practices for power modules in industrial automation environments.
Yes. As a 4Q converter in the DCS880 family, it supports bidirectional power flow and regenerative energy recovery, making it suitable for motor drives with braking energy captured back to the DC link or energy storage paths, enhancing overall system efficiency.
The module complies with IEC 60529 IP00 protection and IEC 60947-1 standards, with origin noted as Poland (PL) and Germany (DE) in supplier data. This alignment supports predictable performance in industrial environments and simplifies documentation for regulatory audits.
Warranty terms indicate warranty-related returns are handled per policy, and the supplier lists a lead time of 35 days with stock at regional warehouses. For ROI, consider reliability, reduced downtime, and efficient energy recapture from regenerative drives in large-scale automation projects.
