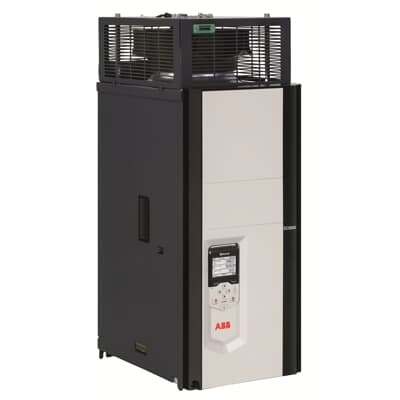

ABB 3ADT218522S0212 DC Converter Module - IP00
Part Number: 3ADT218522S0212
Quick Summary
ABB 3ADT218522S0212 DC Converter Module delivers high-capacity DC conversion for industrial power systems. This 4Q converter supports 525 VAC input and 1190 A output, making it suitable for heavy-duty drives and power electronics panels. Engineers often face installation challenges, including bulky footprints and compatibility with varying frequencies. This module addresses those concerns with a robust IP00 protection class and operation across 50 Hz or 60 Hz systems. By integrating it into substations or drive trains, maintenance teams can improve reliability and reduce wiring complexity. With regional stock and clear lead times, it also supports streamlined procurement and predictable onboarding for capital projects.
Product Information
Extended Description
3ADT218522S0212 ABB: DC Converter;
Type: DCS880-S02-1190-05;
4Q Converter;
Voltage: 525 VAC;
Current: 1190 A;
Weight: 55kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-1190-05;
4Q Converter;
Voltage: 525 VAC;
Current: 1190 A;
Weight: 55kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
55 kg
Product Net Depth / Length
368 mm
Product Net Height
768 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
460 mm
Package Level 1 Height
470 mm
Package Level 1 Width
790 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
75 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H5
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
High-current DC conversion enables 525 VAC input and 1190 A capacity, allowing larger DC links without oversized panels, which translates to improved system reliability and compact cabinet design suitable for heavy-drive applications. The 4Q converter architecture in the DCS880 family provides robust performance under dynamic loads, reducing downtime in power electronics and drive systems. With 3 analog inputs and 2 analog outputs, the module supports precise feedback and seamless integration with PLCs and drive controllers, delivering tighter process control and easier commissioning in motor control and energy management scenarios. IP00 protection and an operating humidity range of 5–95% RH ensure safer operation in controlled industrial environments, lowering maintenance cycles and fault rates for control rooms and workshops. The footprint (368 x 768 x 270 mm) and 55 kg weight enable solid panel mounting, speeding installation and simplifying retrofits in legacy systems while maintaining a neat, scalable architecture for expansion. Lead time of 35 days and regional stock at DEAPREXPU and SGIND002 support meticulous procurement planning and resilient supply chains for capital projects and uptime commitments.
