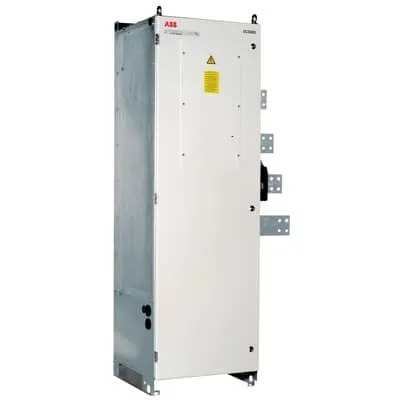

ABB 3ADT218566S0142 DC Converter Module - DCS880-S01-4000-05L
Part Number: 3ADT218566S0142
Quick Summary
ABB DC Converter Module is designed for high-capacity DC power conversion in heavy industrial drives and switchgear applications. Engineers often face reliability, heat management, and integration challenges when scaling power systems, and this module addresses those concerns with a rugged, standardized ABB solution. It aligns with protection and safety standards such as IEC 60529/IP00, EN 60529, and IEC 60947-1, ensuring predictable performance in demanding environments. By leveraging the DCS880-based architecture, users gain seamless compatibility with ABB’s control ecosystem, reducing integration risk. The result is improved system uptime, simplified maintenance, and a clear path to scalable, automated power management in modern factories and infrastructure projects.
Product Information
Extended Description
3ADT218566S0142 ABB: DC Converter;
Type: DCS880-S01-4000-05L;
2Q Converter;
Voltage: 525 VAC;
Current: 4000 A;
Weight: 316kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S01-4000-05L;
2Q Converter;
Voltage: 525 VAC;
Current: 4000 A;
Weight: 316kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
316 kg
Product Net Depth / Length
670 mm
Product Net Height
1760 mm
Product Net Width
760 mm
Package Level 1 Depth / Length
850 mm
Package Level 1 Height
655 mm
Package Level 1 Width
1950 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
82 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H8
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
High-current DC conversion enables fewer parallel units and simplified power topology, reducing total system cost while increasing reliability. The module’s 525 VAC input and 4000 A rating deliver robust performance for large industrial drives, enhancing uptime in critical processes. A rugged enclosure and IP00 protection class, in line with IEC 60529, support operation in challenging environments typical of steel mills, mining, or rail applications, while EN 60529/IEC 60947-1 standards provide clear compliance benchmarks. The 670 mm x 760 mm x 1760 mm footprint and 316 kg weight establish a stable footprint requiring appropriate mechanical support, yet still manageable within dedicated enclosures. Installation is facilitated by the DCS880 integration, enabling faster commissioning and fewer field wiring issues, with 3 analog inputs and 2 analog outputs for versatile control. The 50 Hz/60 Hz compatibility and 2Q converter design contribute to efficient DC bus management, minimizing efficiency losses and heat generation. Industry-specific benefits include improved drive response, reduced energy waste, and easier spare parts planning through centralized ABB sourcing. Long-term ROI comes from minimized downtime, predictable maintenance windows, and streamlined procurement with stock kept at DEAPREXPU and SGIND002EXPU warehouses. In practice, operators gain a reliable backbone for large-scale automation projects that demand high current, robust protection, and straightforward integration.
Get a Quick Quote for a ABB 3ADT218566S0142
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ADT218566S0142?
Enquire Now
FAQs
The module measures 670 mm (length) x 760 mm (width) x 1760 mm (height) and weighs 316 kg, requiring a sturdy mechanical support and appropriate enclosure. Plan for a dedicated space in line with safety clearances and ensure a compatible 525 VAC supply. It supports ABB DCS880 integration, offering straightforward wiring for 3 analog inputs and 2 analog outputs, with minimum order quantity of 1 piece and 35-day lead time for stocking.
Key specs include 525 VAC input, 4000 A current rating, 50 Hz/60 Hz operation, 3 analog inputs and 2 analog outputs, and a frame size H8. The unit is designed for high-current DC power conversion with a 316 kg external mass and 316 kg net weight, suitable for heavy industrial drives and DC bus applications in harsh environments.
Best suited for large drive systems, power conversion in industrial automation plants, DC bus architectures, and switchgear assemblies in sectors like steel, mining, rail, and heavy manufacturing. Its high-current capability and robust ABB integration enable reliable operation in critical processes requiring consistent DC power delivery and quick system diagnostics.
Protection is specified as IP00 per IEC 60529 with related references to EN 60529 and IEC 60947-1, indicating a non-sealed enclosure suitable for controlled indoor environments. The product aligns with ABB’s standard compliance framework and supports integration within ABB automation ecosystems, assisting with regulatory documentation and safety validation.
Warranty terms indicate standard product warranty with a return policy for warranted items; ensure proper handling and hoisting for 316 kg mass. ROI benefits come from reduced downtime, predictable maintenance windows, and streamlined procurement through ABB-affiliated warehouses (DEAPREXPU/SGIND002EXPU). The 35-day lead time is a critical factor in planning large deployments and minimizing project schedule risks.
