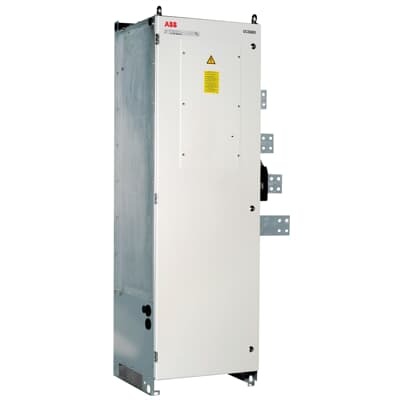

ABB 3ADT218566S0253 DC Converter Module - IP00
Part Number: 3ADT218566S0253
Quick Summary
ABB 3ADT218566S0253 DC Converter Module is a high-current power conversion solution for industrial automation and DC bus systems. It supports demanding loads in drives and control panels while occupying a manageable footprint. Engineers often face challenges sizing and integrating large high-power modules into compact enclosures and ensuring interface compatibility. This module complies with protection standards such as IEC 60529, IEC 60947-1, and EN 60529, featuring IP00 auxiliary terminals for safe operation in controlled environments. With a 4Q converter design, 600 VAC input and 4800 A capacity, it delivers reliable performance within ABB DCS880 ecosystems, simplifying installation and commissioning. The outcome is improved uptime, reduced wiring complexity, and a lower total cost of ownership across automation projects.
Product Information
Extended Description
3ADT218566S0253 ABB: DC Converter;
Type: DCS880-S02-4800-06L;
4Q Converter;
Voltage: 600 VAC;
Current: 4800 A;
Weight: 25kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-4800-06L;
4Q Converter;
Voltage: 600 VAC;
Current: 4800 A;
Weight: 25kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
25 kg
Product Net Depth / Length
317 mm
Product Net Height
1050 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
850 mm
Package Level 1 Height
655 mm
Package Level 1 Width
1950 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
82 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H8
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature → Business Impact → Application: The 4Q converter architecture delivers high-current DC power with robust efficiency, supporting up to 4800 A at 600 VAC. This translates into fewer parallel modules, lower wiring complexity, and reduced cabinet footprint in drive systems and automation panels. Application: ideal for high-load motor drives and DC bus applications within process automation and packaging lines. Feature → Business Impact → Application: IP00-rated auxiliary terminals and IEC 60529/60947-1 compliance provide predictable protection in controlled environments, minimizing risk of dust ingress and enabling easier enclosure design. Application: suitable for panel-mounted solutions in manufacturing environments with strict enclosure standards. Feature → Business Impact → Application: 25 kg weight and H8 frame size simplify installation, service access, and rack integration, reducing install time and technician labor. Application: aligns with retrofit projects and new installations in ABB DCS880 ecosystems. Feature → Business Impact → Application: 3 analog inputs and 2 analog outputs enable rich feedback and control interfaces, improving closed-loop performance and process visibility. Application: precise speed and torque control in automated drives and DC converters. Feature → Business Impact → Application: 317 mm depth, 270 mm width, and 1050 mm height provide a compact, scalable footprint for panel layouts, enabling efficient cooling and cable management. Application: space-constrained automation cabinets and modular control rooms. These technical characteristics support measurable outcomes such as faster commissioning, reduced downtime, and improved reliability across industrial power conversion projects.
