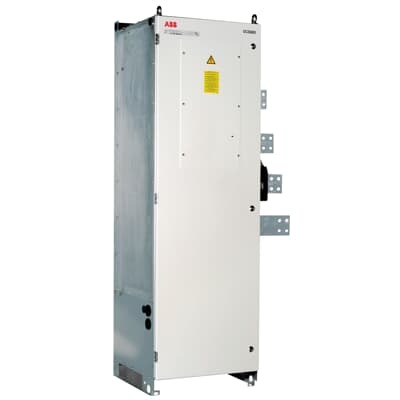

ABB 3ADT218567S0244 DC Converter Module - 690 VAC 4000 A
Part Number: 3ADT218567S0244
Quick Summary
ABB 3ADT218567S0244 is a DC Converter module designed for high-current power conversion in 690 VAC industrial systems. Engineers often face downtime and integration headaches when deploying large DC buses, especially with legacy converters that lack modern four-quadrant capability. This ABB module offers IEC 60529 IP00 protection and IEC 60947-1 electrical standard alignment, helping you meet safety and compatibility requirements in demanding environments. With a 35-day lead time and stock availability at DEAPREXPU and SGIND002EXPU, procurement is predictable while performance remains robust. The unit provides 3 analog inputs and 2 analog outputs, delivering flexible control for modern industrial automation projects and scalable drive architectures.
Product Information
Extended Description
3ADT218567S0244 ABB: DC Converter;
Type: DCS880-S02-4000-07R;
4Q Converter;
Voltage: 690 VAC;
Current: 4000 A;
Weight: 180kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-4000-07R;
4Q Converter;
Voltage: 690 VAC;
Current: 4000 A;
Weight: 180kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
180 kg
Product Net Depth / Length
410 mm
Product Net Height
1760 mm
Product Net Width
460 mm
Package Level 1 Depth / Length
850 mm
Package Level 1 Height
655 mm
Package Level 1 Width
1950 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
82 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H8
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature → Business Impact → Application: High-current 690 VAC capability at 4000 A enables direct drive of large DC motors and power-intensive drives, reducing the need for paralleling multiple converters and lowering system complexity in heavy-duty manufacturing lines. This translates to tighter service intervals, lower total cost of ownership, and faster outage recovery in critical processes. Application: large motor drives in metalworking, extrusion, and heavy machinery where uptime is mission-critical. Feature → Business Impact → Application: Four-quadrant operation supports bidirectional power flow, enabling regenerative braking and energy recovery to improve overall plant efficiency and reduce energy costs. Application: crane systems, rolling mills, and regenerative test benches where energy returned to the DC bus is advantageous. Feature → Business Impact → Application: DCS880-based architecture offers seamless integration with ABB controls, reducing engineering time and enabling consistent diagnostics across drives. Application: modernizing existing ABB automation ecosystems with plug-and-play compatibility and simplified commissioning in packaging, robotics, and material handling. Feature → Business Impact → Application: Robust 180 kg module with a 410 x 460 mm footprint fits sizeable but installable DC converter cabinets, while a 1760 mm height accommodates stacked or tiered installations. Application: retrofit projects and new builds in industrial automation and process industries. Feature → Business Impact → Application: IP00 protection and IEC 60529/60947-1 alignment support safety assessments, with documented operating humidity (5–95%) and sound levels at 82 dB(A). Application: control rooms, workshops, and factory floors where environmental exposure is managed through appropriate enclosures. Feature → Business Impact → Application: Lead time of 35 days and availability at multiple warehouses improve procurement reliability, helping procurement teams plan maintenance windows and budget approvals. Application: capital projects, plant expansions, and preventive maintenance planning in automation environments.
Get a Quick Quote for a ABB 3ADT218567S0244
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ADT218567S0244?
Enquire Now
FAQs
Yes. The 3ADT218567S0244 is designed as part of the DCS880 DC Converter Module family, with four-quadrant operation and standard ABB control interfaces. It integrates with ABB control systems to simplify commissioning, diagnostics, and supervision of high-current DC drives in industrial automation environments.
IP00 indicates no protection against ingress. For harsher environments, install the module in a compliant enclosure or cabinet that provides the needed ingress protection. Ensure cable access and heat dissipation meet the installation’s electrical and thermal requirements to maintain reliability.
The module operates at 690 VAC with a rated current of 4000 A, produced by the 4Q converter architecture. It features 3 analog inputs and 2 analog outputs, a frame size of H8, and a weight of 180 kg, suitable for large motor drives and high-power DC systems.
The product complies with IEC 60529 (protection concepts) down to IP00 and IEC 60947-1 for electrical equipment in low-voltage systems. This alignment supports safety, reliability, and regulatory compliance in industrial automation projects.
Warranty requires returns for warranty claims. The unit is stocked at DEAPREXPU and SGIND002EXPU with a lead time of 35 days. Consider enclosure costs, shipping, and regular maintenance when calculating TCO for large DC converters in high-current installations.
