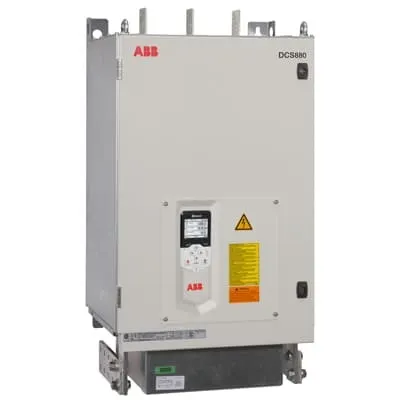

ABB 3ADT218587S0113 DC Converter Module - 2Q, 600 VAC
Part Number: 3ADT218587S0113
Quick Summary
ABB 3ADT218587S0113 is a DC converter module designed for heavy-duty drive systems, delivering reliable 600 VAC power. This model reduces downtime by robust construction and straightforward integration, addressing common maintenance and compatibility challenges when upgrading ABB drive architectures. It meets IP00 protection for auxiliary terminals and aligns with IEC 60529/EN 60529 standards, along with IEC 60947-1 baselines. By supporting the ABB DCS880 family and offering three analog inputs with two outputs, it enables scalable control and improved energy management for industrial automation projects, delivering predictable performance and lower lifecycle costs.
Product Information
Extended Description
3ADT218587S0113 ABB: DC Converter;
Type: DCS880-S01-0900-06;
2Q Converter;
Voltage: 600 VAC;
Current: 0900 A;
Weight: 110kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S01-0900-06;
2Q Converter;
Voltage: 600 VAC;
Current: 0900 A;
Weight: 110kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
110 kg
Product Net Depth / Length
410 mm
Product Net Height
979 mm
Product Net Width
510 mm
Package Level 1 Depth / Length
765 mm
Package Level 1 Height
462 mm
Package Level 1 Width
1165 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
73 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H6
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature → Business Impact → Application: 1) 2Q converter architecture enables bidirectional energy flow, supporting regenerative braking and smoother motor control, reducing mechanical stress and energy waste; ideal for high-torque conveyors and crane systems. 2) 600 VAC, 0900 A rating powers large drives from a single module, reducing wiring complexity and cabinet footprint in material handling and packaging lines. 3) 3 analog inputs and 2 analog outputs provide flexible, precise control and monitoring for process automation, enabling tighter feedback loops in CNC machines and automated assembly cells. 4) IP00 protection on auxiliary terminals improves reliability in factory environments, simplifying commissioning and lowering risk of field wiring faults. 5) Compact H6 frame with 410 mm depth and 510 mm width fits standard PLC racks, shortening installation time and easing spare-part logistics. 6) Poland-origin supply with 35-day lead time supports project planning and on-time procurement, while warranty terms reassure maintenance planning and service continuity.
Get a Quick Quote for a ABB 3ADT218587S0113
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ADT218587S0113?
Enquire Now
FAQs
The module is designed for ABB DCS880 configurations, with a 410 mm depth, 510 mm width footprint and an H6 frame size. It integrates in standard automation cabinets and supports 3 analog inputs and 2 analog outputs for flexible control. Ensure space for the 110 kg unit and verify origin Poland (PL) sourcing with a lead time of 35 days.
The DC converter provides 600 VAC operation with a current rating of 0900 A, configured as a 2Q converter. Its product name is DCS880-S01-0900-06, designed for two-quadrant power handling in industrial drive systems.
Yes. As a 2Q converter, the module supports bidirectional energy flow, enabling regenerative braking scenarios and improved energy efficiency in motor drives such as conveyors and packaging lines.
It provides IP00 protection for auxiliary terminals and aligns with IEC 60529 and EN 60529 standards, with compatibility to IEC 60947-1. This supports reliable operation in typical factory environments.
With a robust construction and 110 kg mass, maintenance intervals are typically predictable. The unit is designed for operation across 5–95% humidity, and warranty terms support service continuity and potential returns within warranty coverage.
