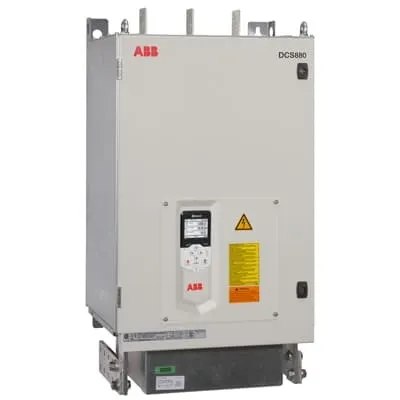

ABB 3ADT218587S0141 DC Converter - IP00, 400 VAC, 2000 A
Part Number: 3ADT218587S0141
Quick Summary
ABB 3ADT218587S0141 DC Converter is a high-current DC power module designed for industrial drives and heavy automation systems. It supports 400 VAC operation and up to 2000 A, making it ideal for large motor drives and energy-management applications. Engineers often grapple with long lead times and the challenge of sourcing robust, space-efficient converters for critical projects; this module addresses that with a documented 35-day lead time and stock availability in multiple warehouses. The device complies with IEC 60529, IEC 60947-1, and EN 60529, and features IP00 protection for auxiliary terminals, aligning with safety and regulatory expectations. It also benefits from ABB's DCS880 ecosystem, enabling seamless integration and future scalability for 3 analog inputs and 2 outputs.
Product Information
Extended Description
3ADT218587S0141 ABB: DC Converter;
Type: DCS880-S01-2000-04;
2Q Converter;
Voltage: 400 VAC;
Current: 2000 A;
Weight: 110kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S01-2000-04;
2Q Converter;
Voltage: 400 VAC;
Current: 2000 A;
Weight: 110kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
110 kg
Product Net Depth / Length
410 mm
Product Net Height
979 mm
Product Net Width
510 mm
Package Level 1 Depth / Length
765 mm
Package Level 1 Height
462 mm
Package Level 1 Width
1165 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
73 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H6
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature → High-current capability (2000 A at 400 VAC) enables direct feeding of large DC motors, reducing the need for intermediate power stages and lowering overall system complexity. Business Impact → Improves efficiency and reliability of high-demand drives, minimizes points of failure, and reduces installation footprint. Application → Heavy-duty conveyor drives, large CNC machines, and energy-intensive production lines. Feature → 2Q converter design supports two-quadrant operation, allowing bidirectional energy flow where regenerative braking or back- feeding is required. Business Impact → Improves regenerative energy management and lowers energy waste in dynamic loads. Application → Rolling mills, plastic extrusion lines, and braking regimes in automation cells. Feature → Rugged enclosure with dimensions of 510 mm (W) x 979 mm (H) x 410 mm (D) and a weight of 110 kg. Business Impact → Stable, enclosure-friendly installation with predictable mounting in dedicated plant rooms or cabinets. Application → Facility-wide power cabinets and retrofit projects where footprint predictability matters. Feature → IP00 protection for auxiliary terminals and IEC 60529/EN 60529 compliance. Business Impact → Clear installation guidance, safer operation in controlled environments, and straightforward compliance documentation. Application → Enclosed control panels in manufacturing environments. Feature → 3 analog inputs and 2 analog outputs provide flexible control and parameterization. Business Impact → Simplifies integration with PLCs and SCADA, enabling tighter closed-loop control and improved process stability. Application → Motor drive tuning, feedback monitoring, and process optimization in automation projects. Feature → Stocked at multiple warehouses with a 35-day lead time and no Made-To-Order requirement. Business Impact → Reduces project lead times, accelerates commissioning, and improves supply chain resilience. Application → Capital projects, retrofits, and plant expansions requiring predictable delivery timelines.
