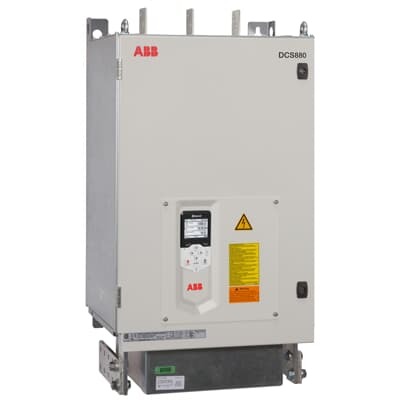

ABB 3ADT218587S0232 DC Converter Module - 525 VAC IP00
Part Number: 3ADT218587S0232
Quick Summary
ABB 3ADT218587S0232 DC Converter Module enables high-current DC power conversion for ABB DCS880-based drive systems in industrial automation. Operators face bottlenecks when scaling heavy motor drives and DC buses, especially around bidirectional power flow and integration risk. This module complies with IEC 60529/IP00, IEC 60947-1, and EN 60529 standards to ensure protection and reliability in controlled environments. With 525 VAC input and up to 1500 A in a four-quadrant design, it supports efficient drive control; 3 analog inputs and 2 analog outputs facilitate seamless integration with existing control architectures, improving time-to-value and total cost of ownership in industrial power electronics projects.
Product Information
Extended Description
3ADT218587S0232 ABB: DC Converter;
Type: DCS880-S02-1500-05;
4Q Converter;
Voltage: 525 VAC;
Current: 1500 A;
Weight: 110kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-1500-05;
4Q Converter;
Voltage: 525 VAC;
Current: 1500 A;
Weight: 110kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
110 kg
Product Net Depth / Length
410 mm
Product Net Height
979 mm
Product Net Width
510 mm
Package Level 1 Depth / Length
765 mm
Package Level 1 Height
462 mm
Package Level 1 Width
1165 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
73 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H6
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature → Four-quadrant DC converter with 525 VAC input and 1500 A output. Business Impact → Enables bidirectional power flow and high-current delivery, reducing bottlenecks in large automation installations. Application → Suitable for heavy motor drives and DC-bus applications in manufacturing and material handling. Feature → 3 analog inputs and 2 analog outputs. Business Impact → Enhances closed-loop control and sensing, shortening commissioning time and increasing process stability. Application → Integrates with ABB control cabinets for servo and drive applications. Feature → Robust physical specs (110 kg, 410 mm depth, 510 mm width, 979 mm height, H6 frame). Business Impact → Easier cabinet mounting and reliable heat management in rugged environments. Application → Ideal for indoor industrial installations with standard rack mounting. Feature → 50/60 Hz operation and protective IP00 rating. Business Impact → Compatibility with global power systems and predictable environmental protection. Application → Ensures stable operation in controlled environments with compliant protection standards.
