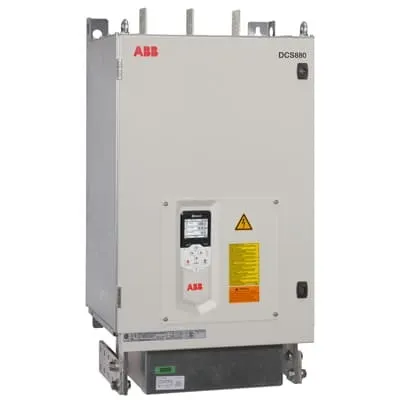

ABB 3ADT218587S0234 DC Converter Module - 4Q Converter
Part Number: 3ADT218587S0234
Quick Summary
ABB 3ADT218587S0234 is a DC converter module designed for high-current power conversion in industrial automation and power distribution. It delivers up to 690 VAC with 1500 A capacity, suitable for demanding drives and bus systems. The challenge many engineers face is integrating a robust, high-current DC converter with precise control while managing installation space and lead times. This module follows the DCS880-S02-1500-07 specification as a 4Q converter, with 110 kg weight and 410x510x979 mm footprint, enabling reliable operation across 50/60 Hz environments. Originating from Poland, it ships from stocked warehouses and offers a reasonable 35-day lead time for made-to-order scenarios, delivering business value through performance, compatibility, and lifecycle support.
Product Information
Extended Description
3ADT218587S0234 ABB: DC Converter;
Type: DCS880-S02-1500-07;
4Q Converter;
Voltage: 690 VAC;
Current: 1500 A;
Weight: 110kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-1500-07;
4Q Converter;
Voltage: 690 VAC;
Current: 1500 A;
Weight: 110kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
110 kg
Product Net Depth / Length
410 mm
Product Net Height
979 mm
Product Net Width
510 mm
Package Level 1 Depth / Length
765 mm
Package Level 1 Height
462 mm
Package Level 1 Width
1165 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
73 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H6
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
The 690 VAC, 1500 A capability translates into significant efficiency gains for high-power motor drives, reducing the need for multiple parallel modules in demanding applications and improving overall system reliability. As a 4Q converter, it supports bidirectional power flow, enabling regenerative braking and energy recovery that cut energy costs in continuous-operation lines. With three analog inputs and two outputs, the module provides flexible control for speed, torque, and feedback loops, simplifying integration with ABB drives and third-party controllers. The IP00 protection rating and rugged 110 kg enclosure offer durable performance in cabinet environments, while the compact 410 x 510 x 979 mm footprint allows easier integration into existing layouts. Stocked at regional warehouses and a 35-day lead time support predictable procurement for project deadlines. The Poland-origin manufacture adds traceability and supply-chain resilience for regulated industries. Long-term, the module reduces maintenance overhead with robust components and a defined lifecycle, delivering measurable ROI through uptime and performance.
Get a Quick Quote for a ABB 3ADT218587S0234
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ADT218587S0234?
Enquire Now
FAQs
Yes. This module is designed as part of the DCS880-S02-1500-07 family and fits standard industrial cabinet enclosures. Plan for a 410 mm depth and 510 mm width footprint with a 979 mm height; ensure proper mounting rails and venting. It connects to 690 VAC sources and supports 50/60 Hz operation. Weight is 110 kg, so confirm floor mounting or heavy-duty rack support. Follow LOTO procedures during installation.
Key specs include 690 VAC operating voltage, 1500 A current rating, 50 Hz and 60 Hz compatibility, and a 4Q converter topology for bidirectional operation. The module weighs 110 kg and has a footprint of 410 x 510 x 979 mm. It offers 3 analog inputs and 2 analog outputs for control and feedback, making it suitable for high-power drive systems.
Yes. The 1500 A, 690 VAC capability supports demanding motor drive applications found in manufacturing, packaging, and material handling. The 4Q converter enables regenerative energy management, reducing peak demand. When integrated with ABB drive ecosystems, it delivers reliable performance, easier diagnostics, and longer lifecycle uptime.
The module provides IP00 protection per IEC 60529 for indoor cabinet use. It adheres to general IEC/EN drive component practices and uses a DCS880-based architecture. The lead times and origin indicate solid supply chain traceability (Poland) and consistent quality. For any customer-specific CE or regulatory requirements, confirm with the supplier or request documentation.
Lead time is typically 35 days, with stock available at DEAPREXPU and SGIND002EXPU warehouses to support urgent projects. Warranty terms specify that warranty returns are handled according to policy. Ongoing support includes BOM-level compatibility confirmations, spare parts availability, and predictable maintenance cycles to maximize uptime and return on investment.
