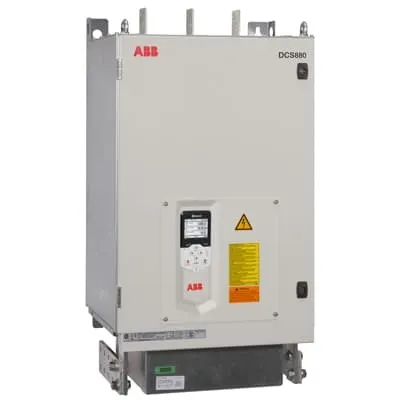

ABB 3ADT218587S0241 DC Converter Module - 400 VAC 2000 A IP00
Part Number: 3ADT218587S0241
Quick Summary
ABB 3ADT218587S0241 DC Converter module provides high-current DC power conversion for industrial drive systems. Engineers often face space, heat, and integration challenges when scaling power for large motors, and downtime costs make reliability critical. This module adheres to IEC 60529 IP00 protection and IEC 60947-1 EN 60529 standards, offering predictable performance within ABB’s DCS880 family. With 400 VAC input and up to 2000 A output, it enables compact DC bus solutions and simplified maintenance. The built-in 3 analog inputs and 2 analog outputs support tighter control loops and faster diagnostics, helping projects meet strict timing, uptime, and safety requirements while reducing total cost of ownership over the system lifecycle.
Product Information
Extended Description
3ADT218587S0241 ABB: DC Converter;
Type: DCS880-S02-2000-04;
4Q Converter;
Voltage: 400 VAC;
Current: 2000 A;
Weight: 110kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-2000-04;
4Q Converter;
Voltage: 400 VAC;
Current: 2000 A;
Weight: 110kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
110 kg
Product Net Depth / Length
410 mm
Product Net Height
979 mm
Product Net Width
510 mm
Package Level 1 Depth / Length
765 mm
Package Level 1 Height
462 mm
Package Level 1 Width
1165 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
73 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H6
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature: High-current power conversion at 400 VAC input and 2000 A output. Business Impact: Enables large motor drives with fewer converter units, reducing footprint and cabling complexity. Application: DC bus for servo drives and heavy machinery in automotive, metals, and plastics industries. Long-tail keywords: high-current DC converter, large motor drive solution, industrial power electronics. Feature: Four-quadrant (4Q) converter architecture. Business Impact: Allows bidirectional power flow and regenerative energy recovery, improving energy efficiency and dynamic response. Application: regenerative braking scenarios and energy-tight automation lines. Feature: 3 analog inputs and 2 analog outputs. Business Impact: Enhances closed-loop control and diagnostics, shortening commissioning time and improving process stability. Application: motion control, compensate voltage sag, and monitor load conditions. Feature: Robust physical footprint (110 kg, 510 mm x 979 mm x 410 mm). Business Impact: Stable mounting in standard industrial cabinets with predictable heat dissipation and vibration performance. Application: harsh manufacturing environments requiring reliable enclosure integration. Feature: IEC standards compliance and IP00 protection. Business Impact: Simplifies compliance documentation and reduces integration risk in regulated facilities. Application: aerospace, automotive, and general industry automation. Feature: Availability and procurement readiness (Stocked at DEAPREXPU and SGIND002EXPU; 35-day lead time). Business Impact: Improves project scheduling and spare-part planning, lowering downtime risk. Application: project bidding, maintenance planning, and long-term asset management.
