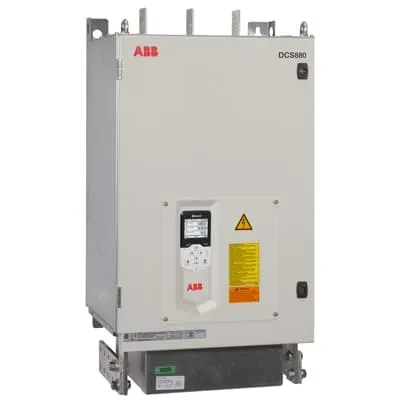

ABB 3ADT218587S0242 DC Converter Module - IP00
Part Number: 3ADT218587S0242
Quick Summary
ABB 3ADT218587S0242 DC Converter Module is designed to deliver high-current DC power for industrial drives. This solution addresses the challenges of bulky, hard-to-integrate power converters by offering a compact footprint suitable for panel and control-room installations. It supports demanding environments with rugged construction and broad operating ranges. The unit meets IEC 60529 IP00 protection, IEC 60947-1, and EN 60529 standards, reinforcing safety and reliability. By aligning with ABB’s DCS880 family, it enables scalable automation architectures, predictable maintenance, and reduced total cost of ownership for energy-intensive applications.
Product Information
Extended Description
3ADT218587S0242 ABB: DC Converter;
Type: DCS880-S02-2000-05;
4Q Converter;
Voltage: 525 VAC;
Current: 2000 A;
Weight: 110kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-2000-05;
4Q Converter;
Voltage: 525 VAC;
Current: 2000 A;
Weight: 110kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
110 kg
Product Net Depth / Length
410 mm
Product Net Height
979 mm
Product Net Width
510 mm
Package Level 1 Depth / Length
765 mm
Package Level 1 Height
462 mm
Package Level 1 Width
1165 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
73 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H6
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature: 525 VAC input with a 2000 A current rating delivers high power density. Business Impact: enables large motor drives with lower cabling losses and simplified cabinet layouts. Application: heavy automation lines and DC link applications. | Feature: 4Q converter topology provides precise control and fast response. Business Impact: tighter process regulation and improved energy efficiency. Application: process automation and dynamic braking in manufacturing. | Feature: 3 analog inputs and 2 analog outputs offer flexible integration with PLCs and ABB DCS880 controllers. Business Impact: easier diagnostics, remote monitoring, and reduced wiring complexity. Application: control panels and automation racks. | Feature: 110 kg weight and 410x510x979 mm footprint support robust installation in factory environments. Business Impact: safer transport, easier mounting, and optimized enclosure planning. Application: panel-mounted drives in CNCs and packaging lines. | Feature: IP00 protection and wide humidity range (5-95% RH) enhance durability. Business Impact: longer service life and lower maintenance costs. Application: industrial automation environments with harsh cooling and humidity conditions. | Feature: Stocked at DEAPREXPU and SGIND002EXPU with 35 day lead time. Business Impact: faster procurement and predictable project scheduling. Application: plant expansions and retrofit projects.
Get a Quick Quote for a ABB 3ADT218587S0242
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ADT218587S0242?
Enquire Now
FAQs
This module is designed for integration within the ABB DCS880 ecosystem, compatible with DCS880-S02-2000-05 configurations, 525 VAC input, and 2000 A ratings. It fits standard panel/rack mounting footprints (410 mm depth x 510 mm width x 979 mm height) and weighs about 110 kg, requiring appropriate handling and mounting provisions.
Key specs include 525 VAC input, 2000 A current capability, 50/60 Hz operation, 3 analog inputs and 2 analog outputs, and IP00 protection. The device supports a broad operating humidity range (5–95% RH) and is rated as a 4Q DC converter within the DCS880 family framework.
Ideal for heavy motor drives, DC bus conditioning, and power conversion in manufacturing, packaging, material handling, and other high-demand industrial automation environments where reliable high-current DC power is critical.
The product complies with IEC 60529/IP00 and IEC 60947-1 (EN 60529) standards for protection and safety in industrial controls, ensuring suitable performance within standard factory automation safety guidelines.
The unit is stocked at DEAPREXPU and SGIND002EXPU with a lead time of up to 35 days. Warranty terms indicate returns are required for warranted items. Heavy-weight installations require proper transport, lifting equipment, and scheduled maintenance to maximize lifecycle and ROI.
