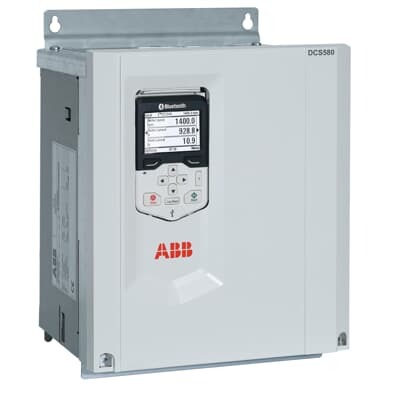

ABB 3ADT218605R0003 DC Rectifier - 525 V 65 A
Part Number: 3ADT218605R0003
Quick Summary
ABB 3ADT218605R0003 DC Rectifier is designed to convert AC to DC for industrial power systems in automation panels. This module addresses common procurement and panel-integration challenges by delivering a compact, panel-included solution that speeds deployment. It supports IEC 60529/IP00 protection and IEC 60947-1 safety standards, helping operators maintain robust performance in demanding environments. With a 525 V / 65 A rating and a panel-ready form factor, it enables reliable power delivery for factory controls and automation PLCs, reducing wiring complexity and enhancing maintenance efficiency.
Product Information
Extended Description
3ADT218605R0003 ABB: DC Rectifier ;
Typecode: DCS580-S01-0065-05X0;
Weight : 11 Kg
Voltage : 525 V;
Current : 65 A;
1 bridge / Rectifier;
incl. Panel;
Country of Origin
Poland (PL)
Lead Time
21 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Rectifier ;
Typecode: DCS580-S01-0065-05X0;
Weight : 11 Kg
Voltage : 525 V;
Current : 65 A;
1 bridge / Rectifier;
incl. Panel;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
0 kg
Product Net Depth / Length
216 mm
Product Net Height
370 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
390 mm
Package Level 1 Height
350 mm
Package Level 1 Width
390 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5 ...95%
Sound dB (A)
55 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
K1
Analog Inputs
2
Analog Outputs
2
Product Name
DCS580 DC Converter Module
Feature → Business Impact → Application: Panel-included design and compact footprint simplifies installation and saves enclosure space, enabling faster panel builds and easier retrofits in automated lines. This supports the long-term goal of lean maintenance and reduced hardware footprint in factory automation. Feature → Business Impact → Application: 525 V input / 65 A output with a single bridge provides high power density and simpler rectification, reducing wiring complexity and enabling reliable NPC drive or servo control in CNC environments. Feature → Business Impact → Application: Panel-mounted dimensions (216 × 370 × 270 mm) and 11 kg weight allow easy integration into compact control cabinets, improving installation times and serviceability in conveyor and packaging lines. Feature → Business Impact → Application: Stocked at multiple warehouses with a 21-day lead time improves BOM planning and procurement reliability, helping engineers avoid production pauses in high-demand automation projects. Feature → Business Impact → Application: Analog Inputs/Outputs (2 each) enable integrated control signaling, reducing external wiring and enabling tighter control loops for process automation. Feature → Business Impact → Application: 50/60 Hz operation and 55 dB(A) sound profile support flexible deployment across varied European and North American facilities, delivering predictable power conditioning for machine tools and robotics.
Get a Quick Quote for a ABB 3ADT218605R0003
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ADT218605R0003?
Enquire Now
FAQs
Yes. The unit ships with the DCS580-S01-0065-05X0 typecode and includes a panel, making it straightforward to drop into existing ABB DCS580-based control cabinets. Check the form factor (216 Ă— 370 Ă— 270 mm) and ensure panel clearance for reliable installation and service access.
This rectifier provides a 525 V DC output at 65 A, with a single bridge configuration, designed for 50/60 Hz operation. Weight is 11 kg, and overall dimensions are 216 Ă— 370 Ă— 270 mm, which support compact cabinet integration and reliable power delivery for automation drives.
Ideal for factory control cabinets, CNC drives, and process automation where a panel-included DC power converter is valued. The 525 V/65 A rating supports servo drives and PLC power supplies, while the 2 analog inputs and 2 analog outputs facilitate tighter integration with control systems and motor drives.
The module specifies IP00 protection per IEC 60529, indicating no external protection. It follows safety references such as IEC 60529/EN 60529 and IEC 60947-1 for safe operation in panel environments. While IP00 means no enclosure protection, the design remains suitable for controlled industrial cabinets with proper enclosure protection.
Lead time is approximately 21 days, and the unit is stocked at multiple warehouses (DEAPREXPU and SGIND002EXPU), enabling faster fulfillment than custom-made alternatives. This supports tighter BOM planning, reliable supply for automation upgrades, and easier maintenance planning in production lines.
