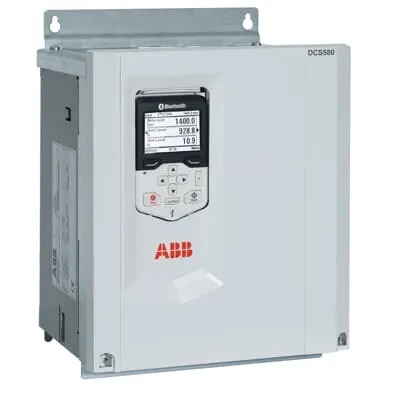

ABB 3ADT218605R0013 DC Rectifier - IP00, 525V/75A
Part Number: 3ADT218605R0013
Quick Summary
ABB 3ADT218605R0013 DC Rectifier is a compact dual-bridge converter designed for reliable DC power delivery in industrial automation and panel-mounted applications. The unit pairs heavy-duty rectification with straightforward installation, reducing wiring complexity and footprint in control panels. Engineers often struggle with sourcing a robust DC supply that meets 525 V and 75 A while fitting limited enclosure space and heat dissipation constraints. This module aligns with strict IEC standards, including IEC 60529 (IP00) and IEC 60947-1 / EN 60529, ensuring predictable protection and safety in indoor environments. By integrating the panel and delivering consistent DC rails, it simplifies procurement, accelerates assembly, and improves uptime for drives, PLCs, and servo systems.
Product Information
Extended Description
3ADT218605R0013 ABB: DC Rectifier ;
Typecode: DCS580-S02-0075-05X0;
Weight : 11 Kg
Voltage : 525 V;
Current : 75 A;
2 bridge / Rectifier;
incl. Panel;
Country of Origin
Poland (PL)
Lead Time
21 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Rectifier ;
Typecode: DCS580-S02-0075-05X0;
Weight : 11 Kg
Voltage : 525 V;
Current : 75 A;
2 bridge / Rectifier;
incl. Panel;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
0 kg
Product Net Depth / Length
216 mm
Product Net Height
370 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
390 mm
Package Level 1 Height
350 mm
Package Level 1 Width
390 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5 ...95%
Sound dB (A)
55 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
K1
Analog Inputs
2
Analog Outputs
2
Product Name
DCS580 DC Converter Module
Feature → Dual-bridge DC rectifier for redundancy and load sharing → Reduces downtime and improves uptime in critical drives and servo systems; Application: panel-mounted drives and motor control. Feature → 525 V, 75 A output → Enables robust DC bus feeding ABB DCS580 modules and stabilizes power rails; Application: industrial automation and robotics. Feature → Panel-included with compact footprint (216 mm depth, 270 mm width, 370 mm height) and weight 11 kg → Speeds installation and minimizes cabinet modification; Application: tight-control panels and machine enclosures. Feature → 50/60 Hz compatibility → Supports global mains without reconfiguration; Application: international manufacturing lines. Feature → IP00 protection per IEC standards → Suits indoor equipment racks with standard safety practices; Application: protected control cabinets. Feature → 2-bridge design and DCS580 DC Converter Module family integration → Improves system reliability and simplifies spare-part strategy; Application: motor drives and PLC-backed power systems. Industry context: leveraging a Poland-origin, readily stocked component reduces lead times (21 days) and streamlines procurement for turnkey automation projects.
