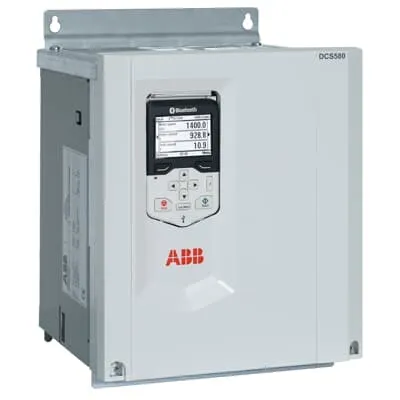

ABB 3ADT218606R0013 DC Rectifier - 525 V / 250 A IP00
Part Number: 3ADT218606R0013
Quick Summary
ABB 3ADT218606R0013 DC Rectifier is designed to deliver reliable DC power for industrial drives and automation panels. This two-bridge rectifier supports 525 V systems and up to 250 A, packaged with a panel for streamlined installation. Engineers often battle space constraints, heat management, and long lead times when specifying power rectifiers for panel builds. The module aligns with IEC 60529 and EN 60529 IP00 protection standards and IEC 60947-1 compatibility, providing safe operation in demanding environments. With a compact footprint and included panel, it reduces enclosure depth, simplifies wiring, and shortens commissioning, delivering measurable business value for automation and drive applications.
Product Information
Extended Description
3ADT218606R0013 ABB: DC Rectifier ;
Typecode: DCS580-S02-0250-05X0;
Weight : 16 Kg
Voltage : 525 V;
Current : 250 A;
2 bridge / Rectifier;
incl. Panel;
Country of Origin
Poland (PL)
Lead Time
21 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Rectifier ;
Typecode: DCS580-S02-0250-05X0;
Weight : 16 Kg
Voltage : 525 V;
Current : 250 A;
2 bridge / Rectifier;
incl. Panel;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
0 kg
Product Net Depth / Length
271 mm
Product Net Height
370 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
390 mm
Package Level 1 Height
350 mm
Package Level 1 Width
390 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5 ...95%
Sound dB (A)
55 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
K2
Analog Inputs
2
Analog Outputs
2
Product Name
DCS580 DC Converter Module
Feature → Two-bridge rectifier with 525 V and 250 A capability plus a panel included offers a compact, all-in-one DC power solution. Business Impact → Reduces installation steps and enclosure space while delivering robust DC power for motor drives; Application → Ideal for panel-mounted DC buses in ABB DCS580-based automation setups, improving time-to-start and overall system reliability. Feature → Compact footprint (271 mm × 370 mm × 270 mm) enables easier cabinet integration and airflow management. Business Impact → Frees interior space, enables denser control architectures, and lowers cooling requirements. Application → Suitable for tight control panels in manufacturing lines and packaging equipment. Feature → IP00 protection with IEC 60529/60947-1 compliance enhances safety and regulatory alignment. Business Impact → Lowers risk of dust ingress and electrical faults, simplifying maintenance planning. Application → Safe operation in typical factory floors and automation environments. Feature → 21-day lead time and stocking at DEAPREXPU/SGIND002EXPU support reliable procurement. Business Impact → Minimizes project delays and procurement queues; Application → Critical for ramped-up production lines and OEM programs. Feature → 2-bridge design supports robust DC outputs and potential redundancy. Business Impact → Improves drive stability and reduces downtime during load changes; Application → Essential for motor drives and DC bus reliability in automation systems.
