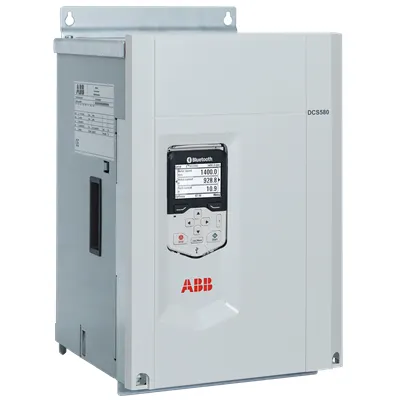

ABB 3ADT218607R0001 DC Rectifier - 525V/315A IP00
Part Number: 3ADT218607R0001
Quick Summary
ABB 3ADT218607R0001 DC Rectifier is a high-capacity power module designed for demanding industrial DC supply. Engineers often face long lead times and integration gaps when updating aging DC bus systems. It complies with IEC 60529 IP00 and IEC 60947-1 safety standards, referencing DCS580-S01-0315-05X0. For procurement, you gain predictable lead times and reliable stock from DEAPREXPU and SGIND002EXPU, supporting faster projects and easier cabinet integration.
Product Information
Extended Description
3ADT218607R0001 ABB: DC Rectifier ;
Typecode: DCS580-S01-0315-05X0;
Weight : 25 Kg
Voltage : 525 V;
Current : 315 A;
1 bridge / Rectifier;
incl. Panel;
Country of Origin
Poland (PL)
Lead Time
21 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Rectifier ;
Typecode: DCS580-S01-0315-05X0;
Weight : 25 Kg
Voltage : 525 V;
Current : 315 A;
1 bridge / Rectifier;
incl. Panel;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
0 kg
Product Net Depth / Length
312 mm
Product Net Height
459 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
318 mm
Package Level 1 Height
318 mm
Package Level 1 Width
520 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5 ...95%
Sound dB (A)
60 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
K3
Analog Inputs
2
Analog Outputs
2
Product Name
DCS580 DC Converter Module
The 3ADT218607R0001 delivers 525 V and 315 A from a single bridge rectifier, packaged with a panel for immediate installation in compact industrial cabinets. This reduces wiring complexity and accelerates commissioning, translating to lower engineering hours and faster time-to-operate on critical lines. The device uses a K3 frame and supports both 50 Hz and 60 Hz power, enabling seamless deployment across regional sites and multiple drive configurations. With two analog inputs and two outputs, it integrates readily with PLCs and motor drives, enabling precise monitoring and control while maintaining a small footprint in control panels. The IP00 protection and compliance to IEC 60529 and IEC 60947-1 standards provide confidence for indoor industrial environments and routine maintenance without sacrificing reliability. Stock availability at DEAPREXPU and SGIND002EXPU shortens procurement cycles for uptime-critical replacements, and the included panel simplifies mounting, reducing field installation risk. Industry context such as Poland-origin manufacturing adds traceability and supply-chain resilience for regional OEMs and integrators.
