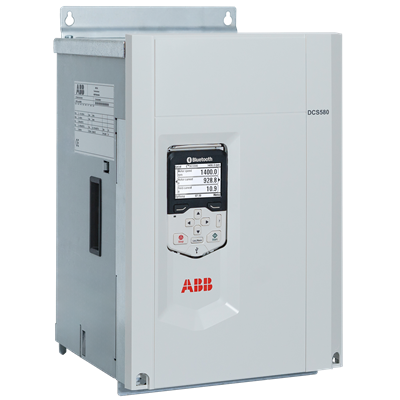

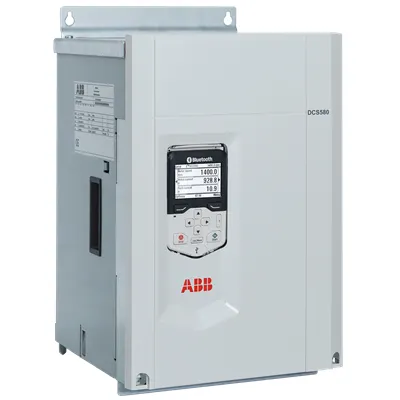

ABB 3ADT218607R0011 DC Rectifier - DCS580-S02-0350-05X0
Part Number: 3ADT218607R0011
Quick Summary
ABB 3ADT218607R0011 DC Rectifier provides reliable high-current DC power for industrial drives and panel systems. This compact 2-bridge rectifier includes the DCS580-S02-0350-05X0 typecode and comes with an integrated panel for streamlined installation. Engineers often struggle with heat management, space constraints, and long lead times when sourcing robust rectifiers for 525 V, 350 A applications. With a 25 kg footprint and panel-inclusive design, this module reduces assembly steps and accelerates commissioning in manufacturing lines. The unit complies with IEC 60529/IP00 protection and IEC 60947-1 safety standards, ensuring safe operation in typical factory environments. For procurement teams, Poland-origin manufacturing and a 21-day lead time support reliable supply and predictable project planning. Secondary benefits include compatibility with ABB DCS580 modules and scalable power distribution.
Product Information
Extended Description
3ADT218607R0011 ABB: DC Rectifier ;
Typecode: DCS580-S02-0350-05X0;
Weight : 25 Kg
Voltage : 525 V;
Current : 350 A;
2 bridge / Rectifier;
incl. Panel;
Country of Origin
Poland (PL)
Lead Time
21 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Rectifier ;
Typecode: DCS580-S02-0350-05X0;
Weight : 25 Kg
Voltage : 525 V;
Current : 350 A;
2 bridge / Rectifier;
incl. Panel;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
0 kg
Product Net Depth / Length
312 mm
Product Net Height
459 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
318 mm
Package Level 1 Height
318 mm
Package Level 1 Width
520 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5 ...95%
Sound dB (A)
60 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
K3
Analog Inputs
2
Analog Outputs
2
Product Name
DCS580 DC Converter Module
Feature: 2-bridge rectifier delivering 525 V at 350 A supports high-current DC loads for industrial drives and power panels. Business Impact: Enables compact, efficient power delivery with fewer components and reduced heat load, accelerating commissioning in automation projects. Application: Suitable for CNC drives, conveyors, and large motor control cabinets where space is at a premium. Feature: Panel-included design and a 25 kg footprint simplify installation, wiring, and service access. Business Impact: Cuts installation time and minimizes field assembly risk, improving uptime in critical manufacturing lines. Application: Ideal for panel builders and machine builders requiring rapid deployment. Feature: IEC-based protection IP00 and safety compliance (IEC 60529, IEC 60947-1). Business Impact: Enhances operator safety and regulatory alignment, reducing risk during audits. Application: Applied in standard factory environments with routine humidity exposure (5-95% RH). Feature: 525 V/50-60 Hz compatibility and 2-bridge topology support scalable power distribution. Business Impact: Enables seamless integration with ABB DCS580 DC Converter ecosystems, supporting growth with predictable performance. Application: Great for scalable power supply architectures in industrial automation. Feature: Stock and lead time clarity (Poland origin, 21 days; stock at DEAPREXPU and SGIND002). Business Impact: Improves procurement planning and supply chain resilience for OEMs and maintenance teams. Application: Beneficial for long-term projects and multi-site rollouts in manufacturing. Feature: Panel-inclusive package with documented dimensions (312 mm depth, 270 mm width, 459 mm height) and weight 25 kg. Business Impact: Facilitates cabinet fit checks and reduces external mounting hardware needs, lowering total installation cost. Application: Suitable for standardized control enclosures and retrofit projects in plant environments.
