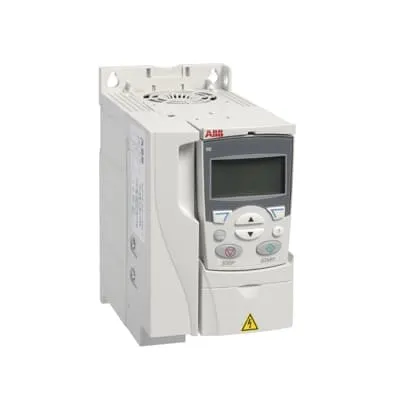

ABB ACS310-03E-10A8-2 LV AC drive module - 2.2 kW
Part Number: 3AUA0000039234
Quick Summary
ABB ACS310-03E-10A8-2 LV AC drive module controls motor speed for pumps and fans in HVAC and process systems, delivering precise speed regulation and smooth startup. Engineers often struggle with unstable flow, energy waste, and time-consuming tuning when integrating variable frequency drives, leading to higher energy bills, frequent controller adjustments, and unpredictable performance under changing load. Common industry standards for drives include CE compliance and robust enclosure protection; verify the datasheet for exact certifications, IP rating, and safety features to meet regulatory requirements and site-specific risk assessments. By combining built-in PID controllers and pump and fan control, this module reduces commissioning time, simplifies parameterization, and supports scalable installations across multiple pumps and fans in mixed environments.
Product Information
Extended Description
3AUA0000039234 ABB: The ACS310 drives are designed for squared torque applications such as booster pumps and supply and return fans. The drive includes a powerful and beneficial set of features designed for pump and fan applications. These features include built-in PID controllers and pump and fan control (PFC) that varies the drive=E2=80=99s performance in response to changes in pressure, flow or other external data.
Built-in PID controllers and pump and fan control (PFC) provide real-time regulation of pressure and flow. This translates to improved process stability, lower energy consumption, and reduced mechanical wear. Applications include booster pumps and supply/return fans in HVAC and process plants. 2.2 kW, 10.8 A power rating matches common pump and fan loads. The result is efficient motor sizing with minimized heat generation and simpler protection settings. This is ideal for compact installations in tight electrical rooms and new-builds where space is at a premium. Squared torque design supports consistent acceleration and torque delivery across varying loads. Benefit: predictable start-up, reduced electrical stress, and longer motor life. Suitable for inline boosters and air-handling units requiring reliable speed control under changing duty cycles. Plug-and-play parameterization and application templates accelerate commissioning. Benefit: shorter project timelines, fewer setup errors, and easier maintenance handover. Use with existing ABB drives families for standardized wiring, safety interlocks, and diagnostics across multiple drives, enabling scalable control across plants and consistent performance in mixed environments. Robust protective features and diagnostics address reliability concerns by enabling early fault detection, safe-stop options, and clear status feedback. This reduces unscheduled downtime and simplifies maintenance planning, making the ACS310-03E-10A8-2 a dependable choice for mission-critical pump and fan systems. Its control loop reacts within milliseconds to detect anomalies. Operators benefit from smoother start/stop sequences and easier overall operation. This drive also supports easy motor protection and overload handling, further simplifying design margins. Energy efficiency is reinforced through controlled ramp rates and a compact footprint that reduces panel size and wiring complexity. The modular architecture supports future expansion, and remote diagnostics via standard interfaces enable proactive maintenance. The features align with industry best practices for reliability and lifecycle management.
Get a Quick Quote for a ABB 3AUA0000039234
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000039234?
Enquire Now
FAQs
Start with confirming motor ratings match the 2.2 kW / 10.8 A specification and verify supply voltage, enclosure type, and protection class. Connect the three-phase motor leads to the drive output, wire the input power and control signaling per the standard low-voltage drive wiring diagram, then configure basic motor data, direction, and ramp settings. Use application templates for pump or fan duty to simplify parameterization, and enable built-in diagnostics to validate wiring integrity during commissioning.
The drive provides a 2.2 kW output with a 10.8 A current rating, and it includes built-in PID controllers plus pump and fan control (PFC) to adjust performance based on external data like pressure or flow. This combination yields precise speed regulation, reduced energy consumption, and smoother startup/shutdown, which translates to improved process stability and longer motor life in variable-duty applications.
Yes. The ACS310-03E-10A8-2 is designed for squared torque applications such as booster pumps and supply/return fans, making it well-suited for HVAC and process-plant duty. Its built-in PID and PFC adapt to changing demands, ensuring reliable airflow and pressure control while optimizing energy use across varying process loads.
Product data sheets for ABB drives typically reference common industrial standards such as CE marking and safety-related protections, but exact certifications can vary by region and installation. Always verify the ACS310-03E-10A8-2 datasheet and the local regulatory requirements to confirm CE, UL, IP ratings, and safety features for your site. Review warranty and service terms as part of procurement to ensure ongoing compliance.
The built-in PID and pump/fan control reduce energy consumption by optimizing speed, while smoother startup and reduced mechanical stress extend motor life. Commissioning is streamlined with templates, and diagnostics support proactive maintenance, lowering downtime. Over time, these factors contribute to a shorter payback period and lower total cost of ownership in HVAC and pumping networks.
