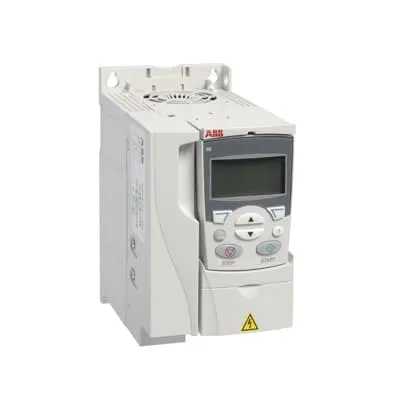

ABB ACS310-03E-14A6-2 LV AC drive module - PFC-enabled
Part Number: 3AUA0000039307
Quick Summary
ABB ACS310-03E-14A6-2 LV AC drive module optimizes pump and fan performance in HVAC and process systems. This compact drive provides precise speed control to reduce energy use and maintain steady process conditions. A common challenge is oversized drives or missing integrated control, which leads to energy waste and complicated commissioning. The ACS310 includes built-in PID controllers and pump and fan control (PFC) to adapt performance to changes in pressure, flow or external data. CE conformity and alignment with regional safety standards support reliable operation in industrial environments. By integrating these capabilities, you can simplify maintenance, reduce external components, and realize measurable cost savings through improved efficiency and equipment life.
Product Information
Extended Description
3AUA0000039307 ABB: The ACS310 drives are designed for squared torque applications such as booster pumps and supply and return fans. The drive includes a powerful and beneficial set of features designed for pump and fan applications. These features include built-in PID controllers and pump and fan control (PFC) that varies the drive=E2=80=99s performance in response to changes in pressure, flow or other external data.
Feature → Business Impact → Application: Built-in PID controllers and pump/fan control (PFC) enable the drive to respond to pressure and flow changes in real time, improving process stability and reducing energy consumption in booster pumps and supply/return fans. This translates to lower operating costs and longer equipment life in HVAC and process industries. Feature → Application → Benefit: 3 kW nominal power with 14.6 A input capability makes the ACS310 suitable for medium-load pumps and fans in multi-box plant setups, delivering scalable control without over-sizing. Feature → Application → Benefit: Compact LV drive module design reduces panel space, simplifies installation, and minimizes wiring complexity in retrofit or new-build projects for water treatment, irrigation, and air handling systems. Feature → Application → Benefit: Built-in pump and fan control (PFC) reduces external control hardware needs, accelerating commissioning and improving system reliability across industrial facilities. Feature → Application → Benefit: The drive’s compatibility with standard ABB drive ecosystems supports easier maintenance, remote monitoring, and integration with automation layers, delivering measurable returns in availability and total cost of ownership.
Get a Quick Quote for a ABB 3AUA0000039307
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000039307?
Enquire Now
FAQs
Begin with a suitable LV power supply, mount the ACS310 in a protected enclosure, and connect motor leads according to the wiring diagram. Configure the built-in PID and pump/fan control (PFC) settings to match your target pressure or flow. Verify motor protection, parameter safety locks, and perform a cautious run-up to full load with monitoring of current and speed.
The drive is rated for 3 kW (Pn) with a maximum current around 14.6 A, intended for low-voltage applications. It features integrated PID and PFC for pump and fan control. It supports standard LV three-phase drives and is designed for booster pumps and supply/return fans in HVAC and process environments.
Yes. The drive is purpose-built for squared torque applications such as booster pumps and supply/return fans. Its built-in PID and PFC controls optimize flow and pressure, delivering energy efficiency and stable operation in HVAC systems and related process environments.
Check CE conformity for safety and emissions compliance and confirm enclosure protection ratings (IP) suitable for your environment. If your safety program requires SIL-capable functionality, verify regional configurations or options that support safety integration. Certification availability can vary by region and configuration, so consult local ABB documentation for exact approvals.
IntegratedPID and PFC reduce external control hardware, simplifying maintenance and commissioning. Energy savings from variable-speed operation contribute to a faster return on investment, while reduced wear from soft-start operations extends motor life. Regular firmware updates and periodic parameter audits help sustain performance in long-running HVAC and pump applications.
