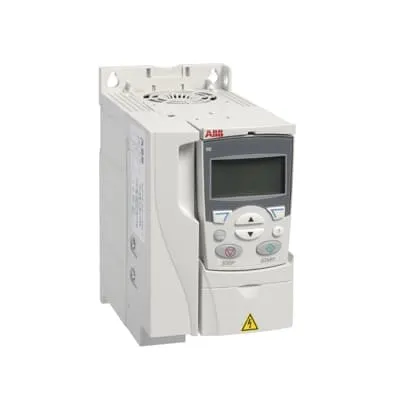

ABB 3AUA0000039621 LV AC drive module - Pn 4 kW, 19.4 A
Part Number: 3AUA0000039621
Quick Summary
ABB LV AC drive module ACS310-03E-19A4 controls pumps and fans to boost efficiency in HVAC and pumping systems. Operators often struggle with energy waste and fluctuating flow when system demands shift, leading to higher run times and costs. The design includes built-in PID controllers and pump and fan control (PFC) to automatically adapt, while robust protections support safe operation in industrial environments. With this module, you can optimize motor performance, reduce operating expenses, and integrate smoothly with existing ABB control architectures for reliable, scalable outcomes.
Product Information
Extended Description
3AUA0000039621 ABB: The ACS310 drives are designed for squared torque applications such as booster pumps and supply and return fans. The drive includes a powerful and beneficial set of features designed for pump and fan applications. These features include built-in PID controllers and pump and fan control (PFC) that varies the drive=E2=80=99s performance in response to changes in pressure, flow or other external data.
Feature: Built-in PID controllers and pump and fan control (PFC) enable precise, responsive regulation of pressure and flow. Business Impact: Reduces energy consumption and wear on pumps and fans, delivering lower operating costs and longer equipment life. Application: Booster pumps and supply/return fans in HVAC and process systems benefit from consistent performance and reduced energy spikes. Feature: Pn 4 kW, 19.4 A rating tailored for mid-range industrial motors. Business Impact: Provides adequate torque and speed control for squared torque applications, improving process stability and control accuracy. Application: Suitable for systems requiring reliable motor drive at moderate power levels in water handling and air handling setups. Feature: Compatibility with the ACS310 family and ABB control ecosystems. Business Impact: Simplifies integration with existing controls, reduces commissioning time, and minimizes wiring changes. Application: Retrofit projects or new installations in plant floors where ABB automation infrastructure is already in use. Feature: Control-focused design for pumps and fans. Business Impact: Delivers smoother start/stop behavior, reduced vibration, and improved process reliability. Application: Industrial HVAC retrofit projects and booster-pump installations where flow and pressure vary widely. Feature: Compact LV drive form factor with field-proven reliability. Business Impact: Saves enclosure space, lowers cable runs, and improves maintenance access. Application: Environments with limited panel space and demanding duty cycles in manufacturing and utilities.
Get a Quick Quote for a ABB 3AUA0000039621
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000039621?
Enquire Now
FAQs
Installation begins with confirming motor compatibility and power ratings (Pn 4 kW, 19.4 A). Connect the drive to the motor and to the control panel, configure the built-in PID and PFC settings for your application, and wire the device to the ABB control network if applicable. Ensure proper shielding, grounding, and protective device coordination to minimize startup transients and EMI effects.
Key specs include a 4 kW nominal power rating and a 19.4 A current draw, with integrated PID controllers and pump and fan control (PFC) designed for squared torque applications such as booster pumps and supply/return fans. It is a low-voltage drive intended for precise speed and torque control in HVAC and pumping scenarios.
Yes. The ACS310-03E-19A4 is explicitly designed for squared torque applications like booster pumps and supply/return fans, leveraging built-in PID and PFC to maintain intended pressure and flow while reducing energy use and mechanical stress.
The provided data does not specify explicit certifications. When purchasing, verify with ABB or the distributor for safety and regulatory markings (such as CE or regional equivalents) and any enclosure rating requirements. Always consult the datasheet and installation standards to ensure local compliance and safe operation in your environment.
Expect measurable energy savings from precise speed control, reduced wear due to smoother torque and start/stop, and lower maintenance costs through enhanced motor protection. The built-in PID and PFC help stabilize processes, which can translate to longer motor life and fewer unplanned outages in pumping and HVAC applications.
