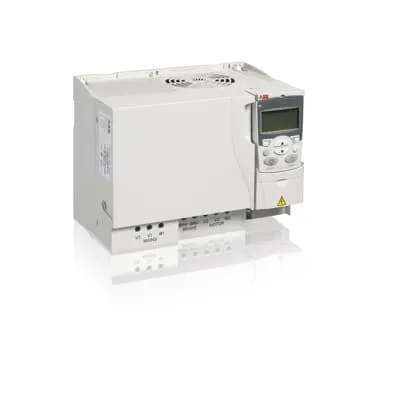

ABB ACS310-03E-34A1-2 LV AC drive module - 7.5 kW
Part Number: 3AUA0000039623
Quick Summary
ABB ACS310-03E-34A1-2 LV AC drive module provides efficient pump and fan control for industrial systems. The solution helps engineers optimize motor speed to meet changing process needs while minimizing energy use. This drive supports built-in PID controllers and pump and fan control (PFC) to adapt to pressure and flow variations in real time. Certifications and standards for industrial drives typically include CE safety compliance and robust enclosure options, with SIL ratings and IP protections varying by installation. Implementing this drive delivers energy efficiency, improved process stability, and easier automation, helping procurement teams realize lower operating costs and faster commissioning across HVAC and pumping applications.
Product Information
Extended Description
3AUA0000039623 ABB: The ACS310 drives are designed for squared torque applications such as booster pumps and supply and return fans. The drive includes a powerful and beneficial set of features designed for pump and fan applications. These features include built-in PID controllers and pump and fan control (PFC) that varies the drive=E2=80=99s performance in response to changes in pressure, flow or other external data.
Feature: Built-in PID controllers and pump and fan control (PFC). Business Impact: Maintains consistent pressure and flow, reduces overshoot, and lowers energy consumption; Application: booster pumps and supply/return fans in HVAC and process systems. Feature: 7.5 kW, 34.1 A rated drive. Business Impact: Provides headroom for variable loads, ensuring reliable performance without over-sizing; Application: high-demand pump and fan applications in rugged environments. Feature: Compact LV drive module design with integrated control. Business Impact: Saves panel space, simplifies wiring, and reduces installation time; Application: retrofit projects and new builds with limited electrical footprint. Feature: Energy efficiency and harmonic management. Business Impact: Lowers electricity costs and improves power quality, aiding compliance with facility power standards; Application: standalone drives or multi-drive assemblies in energy-conscious facilities. Feature: Built-in diagnostics and robust protection. Business Impact: Improves maintenance planning with fewer surprise failures and faster troubleshooting; Application: industrial plants requiring reliable uptime and straightforward commissioning.
Get a Quick Quote for a ABB 3AUA0000039623
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000039623?
Enquire Now
FAQs
Begin by confirming motor ratings match the drive’s 7.5 kW, 34.1 A capability and that the enclosure meets the facility’s IP protection needs. Use the standard ABB wiring diagrams to connect the motor, mains supply, and control terminals. Set the built-in PID and pump/fan control parameters for your system curve, then commission with a staged ramp to avoid mechanical stress.
The drive provides 7.5 kW of output power and 34.1 A nominal current. It includes built-in PID controllers and pump/fan control (PFC) to optimize response to process signals. It is designed for pumps and supply/return fans, delivering smooth speed modulation, energy efficiency, and reliable control in industrial environments.
Yes. The ACS310-03E-34A1-2 is specifically designed for squared torque applications such as booster pumps and supply/return fans. Its integrated PID and pump/fan control enable automatic adjustments to pressure and flow, improving system stability and reducing energy consumption in HVAC and process piping networks.
The provided data does not specify exact certifications. Typical LV drive standards include CE safety compliance and suitable enclosure protections; SIL ratings and additional standards depend on installation and accessories. Always verify the specific certification matrix in the ABB datasheet or with your ABB representative before procurement.
Expected ROI stems from energy savings due to optimized pump/fan speed and reduced throttling losses, plus fewer external controllers thanks to built-in PID and PFC. Maintenance benefits include fewer components to monitor and diagnostics built into the drive, leading to lower maintenance frequency and quicker fault diagnosis, which translates to reduced downtime and total cost of ownership.
