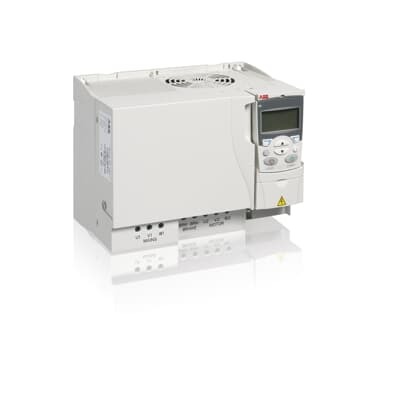

ABB 3AUA0000039637 LV AC drive module - PID & PFC
Part Number: 3AUA0000039637
Quick Summary
The ABB ACS310 LV AC drive module provides precise speed control for pumps and fans. Engineers often contend with fluctuating loads and pressure changes that waste energy and disrupt process stability. Designed for reliability and compliance, it supports built-in PID control and pump and fan coordination, with CE safety compliance and IP-rated enclosure options to match real-world installation needs. By integrating these capabilities within ABB’s control ecosystem, installers can shorten commissioning time, improve energy efficiency, and reduce total cost of ownership for HVAC, water pumping, and process cooling applications.
Product Information
Extended Description
3AUA0000039637 ABB: The ACS310 drives are designed for squared torque applications such as booster pumps and supply and return fans. The drive includes a powerful and beneficial set of features designed for pump and fan applications. These features include built-in PID controllers and pump and fan control (PFC) that varies the drive=E2=80=99s performance in response to changes in pressure, flow or other external data.
Feature: Integrated PID controllers and pump/fan control (PFC) enable closed-loop regulation of pressure and flow. Business Impact: This tight feedback reduces process variability and keeps systems within target performance, cutting energy use and wear on mechanical components. Application: Ideal for booster pumps and supply or return fans in HVAC and industrial cooling. Feature: Pn 18.5 kW and 41.8 A rating provide scalable mid-power drive capability. Business Impact: Allows right-sizing the drive to motor loads, minimizing oversizing losses and delivering consistent torque across the operating range. Application: Suitable for medium-sized pumps and fans in commercial buildings and process lines. Feature: Squared torque-oriented design for pump and fan loads. Business Impact: Delivers stable starting and running characteristics under fluctuating demand, reducing surge currents and electrical noise. Application: Supports duty cycles common in water distribution, boiler feed, and air-handling systems. Feature: Built-in protection and diagnostics for easy maintenance. Business Impact: Improves reliability and reduces downtime through proactive fault detection and remote monitoring readiness. Application: OEMs and service teams integrating the drive into automated control networks. Feature: Installation and interoperability advantages. Business Impact: Easy panel integration, standard wiring, and compatibility with ABB control architectures shorten commissioning and simplify spare parts planning. Application: Suitable for retrofits and new builds in industrial automation and HVAC projects.
Get a Quick Quote for a ABB 3AUA0000039637
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000039637?
Enquire Now
FAQs
Follow standard drive installation practices: mount in a suitable panel, ensure proper heat sinking, connect mains and motor leads according to the ACS310 manual, configure motor parameters for the 18.5 kW rating, enable PID and PFC functions, and set input/output wiring to match the control architecture. Verify EMC and grounding requirements and perform a controlled commissioning with a test load to confirm stable operation.
Key specs include a 18.5 kW power rating and 41.8 A current capacity. The drive features built-in PID controllers and pump and fan control (PFC) for closed-loop regulation, designed for squared torque applications such as booster pumps and supply/return fans, enabling precise speed and flow control across varying loads.
Yes. The ACS310 is designed for squared torque loads typical in booster pumps and air handling or return/supply fans. Its integrated PID and PFC capabilities support stable pressure and flow control, delivering energy savings and extended equipment life in HVAC and water-pumping applications.
Product data emphasizes safety and integration features consistent with common industrial drive expectations. For your region and exact configuration, verify the datasheet for certified standards such as CE and electromagnetic compatibility, and confirm enclosure IP ratings applicable to your installation environment.
The drive’s built-in diagnostics and PID/PFC capabilities reduce energy consumption and mechanical wear, lowering lifecycle costs. ROI improves with energy savings and reduced downtime; ABB support services can further streamline troubleshooting and maintenance planning, especially in retrofit projects or expanding automation ecosystems.
