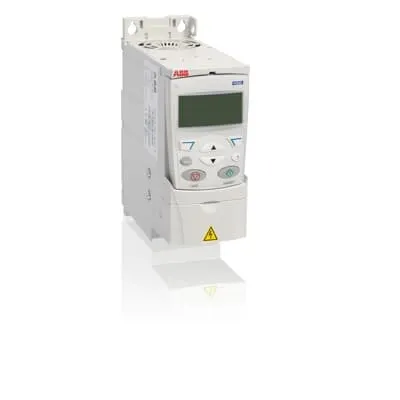

ABB ACS320 HVAC Microdrive - UL 10 Hp 460 V
Part Number: 3AUA0000039664
Quick Summary
ACS320 HVAC microdrive from ABB provides precise speed control for pump and fan applications in HVAC systems. Engineers often face energy waste and integration challenges with building management systems, which can drive up operating costs. This device delivers UL-listed safety, embedded BACnet MS/TP communication, and a compact OEM-ready form factor to support 460 V, 10 HP configurations. By combining these capabilities, ABB enables reduced energy consumption, faster commissioning, and seamless integration with existing HVAC infrastructure, delivering measurable business value for OEM equipment and facilities operations.
Product Information
Extended Description
3AUA0000039664 ABB: The compact ACS320 will save energy throughout your pump and fan HVAC applications. From booster pumps, exhaust and condenser fans to supply and return fans, the drive=E2=80=99s built-in HVAC features such as embedded BACnet (MS/TP) ensure easy and complete integration into building management systems.
Feature: Embedded BACnet MS/TP for Building Management System (BMS) integration. Benefit: Simplifies commissioning and reduces wiring complexity, enabling centralized HVAC control across equipment. Application: Ideal for distributed pump and fan systems in commercial buildings where BACnet is standard. Feature: UL-listed electrical safety with 10 HP rating at 460 V. Benefit: Ensures compliance and reliable performance in demanding HVAC installations, lowering risk and maintenance costs. Application: OEM HVAC drives driving boilers, pumps, and fans in industrial or office buildings. Feature: Compact footprint and OEM-friendly packaging. Benefit: Eases mounting in tight enclosures and retrofit projects, reducing installation time. Application: Retrofit of legacy drives in booster pumps and air handling units. Feature: Energy-efficient speed control for pumps and fans. Benefit: Reduces energy bills and CO2 footprint while extending motor life. Application: Continuous speed modulation in variable-volume HVAC systems. Feature: Robust engineering for 460 V systems with straightforward parameterization. Benefit: Minimizes downtime and improves reliability in industrial facilities. Application: New installations or refurbishments requiring quick, predictable drive setup and performance.
Get a Quick Quote for a ABB 3AUA0000039664
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000039664?
Enquire Now
FAQs
Begin with confirming a 460 V supply and the drive’s 10 HP rating (approximately 22.1 A). Mount the ACS320 in a compliant enclosure, wire the motor to the drive per ABB installation guidelines, and connect the BACnet MS/TP network for BMS access. Configure basic parameters (voltage, frequency, ramp rates) and perform a thorough functional test to ensure smooth speed control, protection features, and safe lockout sequences.
Yes. The ACS320 includes built-in BACnet MS/TP support, allowing direct communication with modern building management systems. Configure device addressing, network topology, and BACnet objects to enable centralized control of pumps and fans, reducing commissioning time and enabling real-time monitoring and fault diagnostics from the BMS console.
The device is a 10 HP HVAC microdrive designed for 460 V three-phase systems and answers to 22.1 A nominal current. It is UL-listed for electrical safety and intended for OEM pump and fan applications in HVAC. The compact ACS320-03U-15A6-4 supports precise speed control and integration with standard 460 V HVAC motors.
Best suited for booster pumps, exhaust and condenser fans, and supply/return fans in commercial and industrial HVAC installations. The embedded BACnet MS/TP enables direct BMS integration, while the 10 HP at 460 V capability supports modest to mid-size motor loads. The drive’s energy-saving capabilities and compact form factor make it a strong choice for OEM equipment upgrading.
ROI benefits come from reduced energy consumption due to precise speed control, decreased commissioning time via built-in BACnet, and improved reliability from UL-listed safety features. Maintenance is simplified by a compact, service-friendly design and clear parameterization. Over the equipment lifecycle, operators can expect lower energy bills, fewer spares needs, and longer motor life due to smoother operation.
