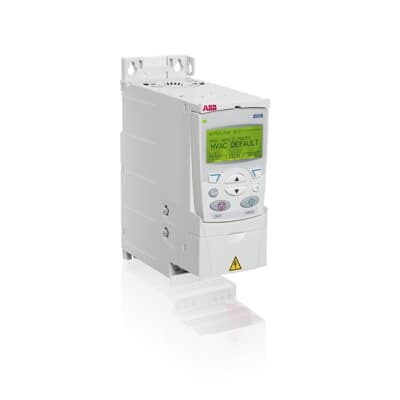

ABB ACS320-03U-23A1-4 HVAC Microdrive - BACnet MS/TP
Part Number: 3AUA0000039665
Quick Summary
ABB ACS320-03U-23A1-4 HVAC microdrive optimizes pump and fan control in HVAC systems. Engineers often struggle with energy waste and integration headaches when upgrading legacy drives or coordinating with building management systems. This drive aligns UL safety standards with BACnet MS/TP readiness to simplify commissioning and compliance in compact installations. With precise speed control and HVAC-specific features, it delivers tangible energy savings, reduced wear, and easier maintenance. For OEMs and facility teams, the result is lower operating costs, faster project timelines, and a scalable control solution for evolving climate control needs.
Product Information
Extended Description
3AUA0000039665 ABB: The compact ACS320 will save energy throughout your pump and fan HVAC applications. From booster pumps, exhaust and condenser fans to supply and return fans, the drive=E2=80=99s built-in HVAC features such as embedded BACnet (MS/TP) ensure easy and complete integration into building management systems.
Feature → Business Impact → Application: The ACS320-03U-23A1-4 is a compact HVAC microdrive that enables precise motor control for pumps and fans while occupying minimal cabinet space, reducing installation complexity and enabling faster commissioning on new or retrofit projects. This directly translates to lower site labor costs and a smaller footprint in equipment rooms, making it ideal for space-constrained HVAC OEM installations and retrofits. Feature → Business Impact → Application: Built-in BACnet MS/TP communication streamlines building automation integration, allowing centralized monitoring, fault detection, and faster troubleshooting across multiple units. In practice, booster pumps, exhaust and condenser fans, and supply/return fans can be controlled from a single BMS, cutting wiring and integration risk. Feature → Business Impact → Application: Energy-efficient control algorithms and variable speed operation deliver measurable reductions in running costs and peak demand, extending motor life and lowering total cost of ownership. This is especially valuable for large-scale hospital, data center, or commercial building projects with continuous fan duty cycles. Feature → Business Impact → Application: 460 V 3-phase input with a 15 HP rating and 30.9 A current profile provides robust start-up torque and reliable performance for medium-size HVAC pumps and fans, increasing system reliability and reducing nuisance trips in variable-load scenarios. Feature → Business Impact → Application: Installer-friendly mounting and standard ABB interfaces streamline procurement, spare parts availability, and service support, ensuring compatibility with existing ABB drive ecosystems and simplifying ongoing maintenance across multiple facilities.
Get a Quick Quote for a ABB 3AUA0000039665
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000039665?
Enquire Now
FAQs
The ACS320-03U-23A1-4 is a 460 V three-phase microdrive rated at 15 HP, designed for HVAC pumps and fans. Ensure proper electrical supply, motor connection, and protective enclosure. Use the built-in BACnet MS/TP for simple BMS integration and follow the ABB installation guidelines for wiring, grounding, and thermal management to minimize startup faults and ensure reliable operation.
Key specs include 460 V (three-phase) input, 15 HP output, and a nominal 30.9 A current draw under full-load conditions. Confirm motor ratings match the drive output, verify wiring to a suitable circuit breaker, and ensure adequate cooling for continuous operation in HVAC duty cycles to avoid thermal trips.
Yes. The ACS320-03U-23A1-4 is purpose-built for HVAC applications, including booster pumps, exhaust fans, condenser fans, and supply/return fans. Its compact form factor and HVAC-specific features enable smooth speed control, improved energy efficiency, and reliable performance in varying load profiles typical of building HVAC systems.
The ACS320-03U-23A1-4 carries UL-related safety considerations and BACnet MS/TP compatibility for building automation integration. While regional certifications may vary, the device is designed to meet common HVAC and electrical safety expectations, with built-in capabilities to support compliant installation within modern commercial and industrial spaces.
Typical benefits come from precise variable-speed control reducing fan and pump energy use during part-load conditions, leading to lower energy bills and reduced wear. Maintenance is simplified by fewer wiring changes and a modular drive platform with long-term spare-part availability, contributing to lower lifecycle costs and faster issue resolution.
