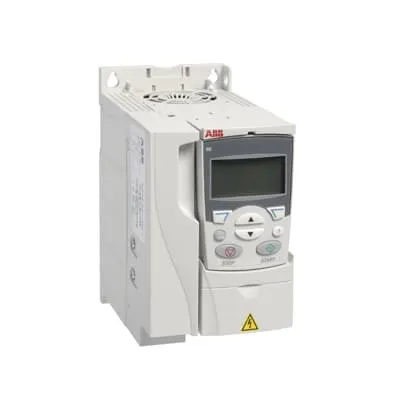

ABB ACS310-01U-07A5-2 LV AC drive for pumps and fans - built-in PID control
Part Number: 3AUA0000049466
Quick Summary
ABB ACS310-01U-07A5-2 LV AC drive for pumps and fans in industrial HVAC and pumping systems. It addresses energy waste and unstable flow control caused by variable loads and changing process demands. Designed for CE certification and suitable for IP-rated installations, with SIL considerations depending on how the safety function is integrated. By delivering built-in PID control and pump-and-fan optimization, it helps you meet performance targets while reducing operating costs, equipment wear, and spare-part consumption. Its compact form, robust protection features, and compatibility with ABB control architectures support faster commissioning and easier maintenance.
Product Information
Extended Description
3AUA0000049466 ABB: The ACS310 drives are designed for variable torque applications such as booster pumps and supply and return fans. The drive includes a powerful and beneficial set of features designed for pump and fan applications. These features include built-in PID controllers and pump and fan control (PFC) that varies the drive=E2=80=99s performance in response to changes in pressure, flow or other external data.
Feature → Business Impact → Application: Built-in PID controllers and pump/fan control (PFC) provide precise regulation without external controllers, reducing process variability and energy use while simplifying system integration for booster pumps and supply/return fans. Applications include HVAC booster pumps and air handling fans in process cooling, where tight control translates to stable pressures and reduced energy waste. Feature → Business Impact → Application: Energy-efficient vector control and torque management optimize variable torque loads, cutting electricity consumption as motor speed aligns with demand. This is especially beneficial for large-scale fans and pump trains in industrial facilities, delivering measurable OPEX reductions and longer equipment life. Feature → Business Impact → Application: Compact LV drive module designed for panel mounting with straightforward wiring accelerates commissioning and enables seamless integration with ABB ecosystems. This minimizes field engineering time and reduces installation risk in control panels for pumps and fans. Feature → Business Impact → Application: Robust protection and fault-handling improve uptime in harsh environments, lowering maintenance costs and minimizing unplanned downtime for critical pumping and ventilation systems. Feature → Business Impact → Application: Clear lifecycle cost advantages and ROI from fewer external components, lower wear, and predictable maintenance schedules support long-term budgeting for OEMs and end users.
Get a Quick Quote for a ABB 3AUA0000049466
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000049466?
Enquire Now
FAQs
Plan for panel mounting in a suitable enclosure with adequate IP protection, use a standard 35 mm DIN rail mounting method, and route wiring cleanly to the mains, motor, and sensor inputs. Enable built-in PID control and pump/fan optimization during commissioning, and ensure proper motor protection and safe wiring practices per ABB guidelines.
The built-in PID and PFC optimize motor speed in response to pressure or flow variations, reducing throttling and excessive fan/pump operation. Expect measurable energy savings, smoother process regulation, and extended motor life due to reduced mechanical wear, especially in variable-torque applications like boosters and HVAC fans.
Yes. The ACS310-01U-07A5-2 is designed for variable torque applications such as booster pumps and supply/return fans, delivering precise speed control, energy efficiency, and reliable operation in challenging industrial environments.
The drive is CE-certified, supporting EU safety and EMC requirements. For harsh environments, consider IP-rated enclosure configurations. System safety (SIL) considerations depend on your overall safety design and integration with other protective measures; consult your commissioning engineer for a complete risk assessment.
By reducing energy consumption, simplifying control architecture with built-in PID, and lowering external component count, the ACS310 can shorten payback periods. Maintenance benefits include fewer external controllers to manage and fewer wiring points, contributing to lower lifecycle costs and higher uptime in pumping and ventilation systems.
