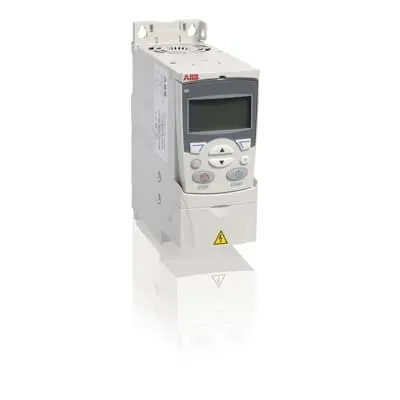

ABB 3AUA0000049480 LV AC Drive Module - ACS310-03U-01A3-4
Part Number: 3AUA0000049480
Quick Summary
LV AC drive module from ABB enables precise speed control for pumps and fans in industrial HVAC and pumping systems. Users often struggle with pressure fluctuations, energy waste, and tedious tuning when optimizing pump and fan performance. This model aligns with CE marking and EMC safety standards; verify IP rating and SIL capability on the datasheet for your application. The compact, feature-rich design reduces energy use and enables fast commissioning, delivering measurable value in uptime, maintenance costs, and overall plant efficiency. In addition to core pumping and ventilation tasks, it supports integration with industrial automation and energy management, making it a strategic choice for modern control architectures.
Product Information
Extended Description
3AUA0000049480 ABB: The ACS310 drives are designed for variable torque applications such as booster pumps and supply and return fans. The drive includes a powerful and beneficial set of features designed for pump and fan applications. These features include built-in PID controllers and pump and fan control (PFC) that varies the drive=E2=80=99s performance in response to changes in pressure, flow or other external data.
Feature: Built-in PID controllers and pump/fan control (PFC) directly respond to changes in pressure, flow, or other external data. Business Impact: Improves regulation accuracy, reduces energy consumption, and minimizes wear on pumps and fans. Application: Booster pumps and supply/return fans in HVAC and water handling systems. Feature: Variable torque optimization tailored for pumps and fans. Business Impact: Optimizes motor torque curves to match system demand, enabling precise speed ramping and smoother operation. Application: Large air handling units and pumping circuits where load fluctuates. Feature: Compact ACS310 architecture with PLC-friendly integration and straightforward commissioning. Business Impact: Speeds up installation and reduces commissioning time, lowering labor costs and downtime. Application: Retrofit projects in existing control panels and new builds alike. Feature: Energy efficiency and maintenance advantages. Business Impact: Lower operating costs through optimized motor drive, easier fault diagnosis, and safer remote monitoring. Application: Industrial plants pursuing energy management and reliability improvements. Feature: Robust compatibility with pump and fan control scenarios. Business Impact: Simplifies integration with standard fieldbuses and control schemes, reducing engineering risk. Application: Systems requiring predictable performance under varying loads and fluid conditions.
Get a Quick Quote for a ABB 3AUA0000049480
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000049480?
Enquire Now
FAQs
The ACS310-03U-01A3-4 is designed for integration with standard LV motors used in booster pumps and air handling fans. It supports common motor wiring schemes, built-in protection features, and straightforward parameter transfer from existing drives. For retrofit projects, verify supply voltage, motor horsepower rating (Pn 0.5 Hp) and current (1.3 A) to ensure a seamless swap and minimal downtime.
Key specs include a nominal power rating of 0.5 horsepower and a current draw of 1.3 A, designed for variable torque applications. It features built-in PID controllers and pump and fan control (PFC), enabling dynamic response to pressure and flow changes. The drive is optimized for booster pumps and supply/return fans, delivering precise speed control and energy efficiency.
Yes. The ACS310-03U-01A3-4 is specifically designed for variable torque pump and fan applications, including booster pumps and HVAC air handling units. Its built-in PID and PFC enable responsive regulation to changing system conditions, improving pressure stability and reducing energy use in pumps and fans within these environments.
The drive typically complies with CE marking and applicable EMC/safety standards. Certification details, including IP rating and SIL suitability, can vary by region and installation, so consult the datasheet for your location to confirm exact coverage and any additional regulatory requirements before deployment.
By enabling precise speed control and built-in PID/PFC features, the ACS310 reduces energy consumption and improves process stability, which lowers operating costs and downtime. Its compact install and streamlined commissioning shorten project timelines, while diagnostics and automatic adjustments minimize maintenance effort and extend motor life in pump and fan systems.
