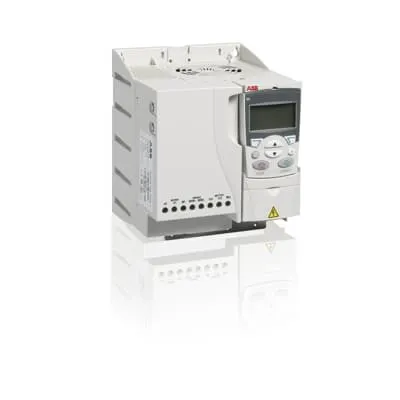

ABB ACS310-03U-17A2-4 LV AC Drive - PFC & PID Built-in
Part Number: 3AUA0000049489
Quick Summary
The ABB ACS310-03U-17A2-4 LV AC drive module optimizes variable torque control for pumps and fans in HVAC and process settings. Engineers often confront energy waste and unstable processes when drives cannot react to changing pressure or flow. This model ships with built-in PID controllers and pump and fan control (PFC), aligning speed with system demand while maintaining reliable operation. With CE compliance and adherence to common LV drive safety standards, it supports safe integration into existing equipment. By delivering precise speed modulation and robust protection, it reduces energy costs and extends motor life, while enabling easier commissioning and ongoing diagnostics for maintenance teams and procurement stakeholders.
Product Information
Extended Description
3AUA0000049489 ABB: The ACS310 drives are designed for variable torque applications such as booster pumps and supply and return fans. The drive includes a powerful and beneficial set of features designed for pump and fan applications. These features include built-in PID controllers and pump and fan control (PFC) that varies the drive=E2=80=99s performance in response to changes in pressure, flow or other external data.
Built-in PID controllers provide closed-loop regulation for pump and fan applications. This enables tighter process control, reducing overshoot and energy consumption across communicating systems, which translates to lower utility costs and extended motor life. The ACS310-03U-17A2-4 is well-suited for booster pumps and supply/return fans in HVAC and process lines, where precise speed control directly impacts efficiency and reliability. Pump and fan control (PFC) adjusts drive performance in response to real-time pressure and flow data, delivering stable operation and reduced wear on mechanical components. In practice, facilities see improved process stability, fewer batch variations, and safer startup sequences during transitions between load conditions. The drive’s variable torque optimization supports energy-efficient operation without compromising performance.
Get a Quick Quote for a ABB 3AUA0000049489
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000049489?
Enquire Now
FAQs
Begin with confirming motor compatibility and supply voltage, then wire the drive to the motor per ABB installation guidelines. Use the built-in PID and PFC features to configure feedback from pressure or flow sensors. Commissioning typically involves setting motor limits, tuning the PID, and validating protection parameters to ensure safe, efficient operation in HVAC applications.
Best suited for variable torque loads such as booster pumps and supply/return fans in HVAC, water treatment, and process industries. The drive’s PID control and pump/fan regulation optimize speed to meet changing process demands, improving energy efficiency and reducing mechanical wear in pumped or air-moving systems.
Key specs include a 10 HP nominal rating and 17.2 A current for low voltage operation. It is a dedicated LV AC drive module designed for pump and fan applications, featuring built-in PID controllers and pump/fan control (PFC) to adjust performance in response to process data.
Yes. The ACS310-03U-17A2-4 includes integrated PID controllers and pump/fan control capabilities, enabling closed-loop speed regulation and automatic adjustment to real-time pressure and flow changes for reliable, energy-efficient operation.
Plan for proper enclosure and electrical clearances, verify motor compatibility and wiring, provide reliable sensor data for PFC, and allocate space for heat dissipation. Ensure documentation for safety standards, commissioning procedures, and routine diagnostics are in place to maximize uptime and ROI.
