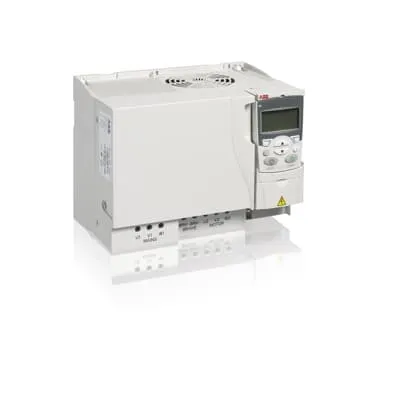

ABB ACS310-03U-34A1-4 LV AC Drive for Pumps and Fans - Built-in PID
Part Number: 3AUA0000049493
Quick Summary
ACS310-03U-34A1-4 LV AC drive module from ABB provides precise speed control for pumps and fans in HVAC and process systems. Many applications struggle with fluctuating pressure or flow, causing energy waste and wear on mechanical components. This drive includes built-in PID controllers and pump/fan control (PFC) that automatically adjusts performance in response to external data, delivering stable operation and reduced energy use. It carries CE certification for European markets and is designed for reliable operation in standard industrial environments; confirm exact IP and SIL ratings with ABB. Integrating this drive into your control stack can lower energy costs, improve process stability, and simplify maintenance, while offering compatibility with ABB's broader motor-control ecosystem.
Product Information
Extended Description
3AUA0000049493 ABB: The ACS310 drives are designed for variable torque applications such as booster pumps and supply and return fans. The drive includes a powerful and beneficial set of features designed for pump and fan applications. These features include built-in PID controllers and pump and fan control (PFC) that varies the drive=E2=80=99s performance in response to changes in pressure, flow or other external data.
Built-in PID controllers and pump/fan control (PFC) automate process adjustments, delivering tighter regulation and reduced energy consumption. This translates to measurable efficiency gains and longer equipment life by avoiding excessive starts and stops. Applications include booster pumps and supply/return fans, where consistent pressure and flow are essential. Designed for variable torque applications like pumping and ventilation, the ACS310 adapts torque to demand rather than simply boosting speed. The result is smoother operation, lower motor current peaks, and improved grid compatibility. Use cases include HVAC duct fans and water-supply booster systems, where load varies with process conditions. With a 20 Hp rating and 34.1 A drive current, the module fits mid-size motor loads without needing external accessories, reducing upfront hardware and simplifying wiring. Energy efficiency is amplified by built-in PFC, helping to maintain favorable power factor and reduce utility charges in facilities with multiple drives. ABB’s LV drive architecture supports compact enclosure footprints and straightforward wiring, easing installation time and panel space requirements. The ACS310 is designed for easy integration with ABB’s motor-control ecosystem, offering streamlined commissioning, diagnostics, and maintenance workflows for reliable operation in mission-critical air handling and water systems.
Get a Quick Quote for a ABB 3AUA0000049493
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000049493?
Enquire Now
FAQs
The ACS310-03U-34A1-4 is a low-voltage drive designed for three-phase motors used with pumps and fans. Ensure the motor current rating aligns with 34.1 A and horsepower around 20 Hp, and verify voltage compatibility and enclosure requirements with ABB during commissioning.
Key specs include 20 Hp (Pn) and 34.1 A, built-in PID controllers, and pump/fan control (PFC) optimized for variable torque loads in pumping and ventilation applications.
Yes. The drive is specifically designed for booster pumps and supply/return fans, delivering adaptive torque control and energy efficiency in HVAC and water-management systems.
The model includes CE certification for European markets. Exact IP and SIL ratings are not specified in the data provided; contact ABB for definitive ratings and verification in your region.
Expected benefits include energy savings from efficient torque control, reduced wear from smoother starts/stops, and simplified maintenance through integrated diagnostics and ABB ecosystem compatibility.
