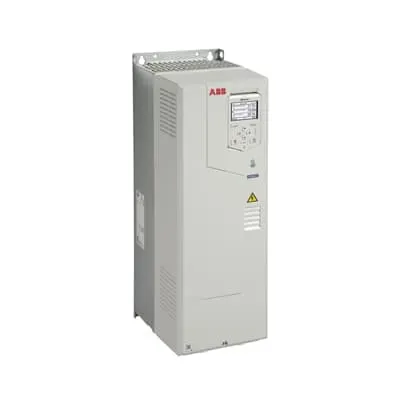

ABB ACH580-01-062A-4 HVAC drive - IP21 Enclosure
Part Number: 3AUA0000080523
Quick Summary
ABB ACH580-01-062A-4 HVAC drive is a wall-mounted, low-voltage solution that precisely controls fans, pumps and compressors in commercial HVAC systems. It addresses the common pain point of lengthy commissioning and integration when upgrading legacy drives, offering built-in HVAC-specific logic and intuitive setup. The design emphasizes reliability in mission-critical environments, with IP21 enclosure standard and optional IP55 and flange mounting for tougher installations. UL-listed capabilities further support safe operation in regulated facilities. By combining compact footprint with built-in control features, this drive delivers faster startup, easier maintenance, and predictable performance, while enabling energy-efficient operation across zoning, AHUs and chillers. The device pairs well with ABB controls ecosystem and modern commissioning workflows.
Product Information
Extended Description
3AUA0000080523 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Built-in HVAC control algorithms optimize fan and pump performance, reducing energy consumption and running costs across HVAC systems. This translates to measurable energy savings and compliance with performance standards in commercial buildings, data centers, and hospitals, where precision matters for thermal comfort. Application: Fans, pumps, compressors in air-handling units and chiller plants benefit from smoother operation and faster ramping. Feature → Business Impact → Application: Intuitive HVAC-specific primary settings menu and help assistants shorten commissioning time and minimize human error during startup. Application: Technicians and engineers deploying new AHUs or retrofitting chillers gain a quicker path to optimized setpoints and safe operation, improving project timelines. Feature → Business Impact → Application: Optional Bluetooth capability enables remote commissioning and monitoring, reducing on-site site visits and service windows. Application: Field service teams can troubleshoot, adjust, and verify performance from a control room, enhancing uptime. Feature → Business Impact → Application: IP21 standard enclosure with optional IP55 or flange mounting provides installation flexibility in restricted spaces and challenging environments. Application: Wall-mounted installations in equipment rooms, plant floors and duct risers, with scalable mounting options. Feature → Business Impact → Application: 30 kW, 62 A, 400 V rating aligns with common HVAC motors, ensuring reliable drive sizing, reduced wiring complexity, and straightforward compatibility with UL-listed Pld 40 Hp configurations. Application: Medium-sized fans and pumps in commercial HVAC systems. Feature → Business Impact → Application: Built-in energy management and fault monitoring support ongoing performance and compliance, lowering maintenance costs and improving lifecycle ROI. Application: Schools, office buildings, healthcare facilities seeking predictable energy use and reduced total cost of ownership.
Get a Quick Quote for a ABB 3AUA0000080523
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000080523?
Enquire Now
FAQs
Yes. The ACH580-01-062A-4 is designed for 400 V systems and comes in a wall-mount form factor with an IP21 enclosure as standard. It supports typical HVAC loads such as fans, pumps and compressors and includes options for IP55 mounting to suit more demanding environments, ensuring straightforward integration into most commercial HVAC projects.
Key specs include a 30 kW (Pn) rating, 62 A current capability, and 400 V supply. The UL listing corresponds to Pld 40 Hp with 52 A, aligning motor sizing with common HVAC motors. The device is designed for wall-mount installation, with IP21 as standard and IP55 as an option, making it suitable for varied plant environments.
Yes, the ACH580-01-062A-4 offers an optional Bluetooth capability that enables remote commissioning and monitoring. This reduces on-site visits, speeds up tuning, and allows engineers to verify performance from a control room, which is especially beneficial for multi-zone HVAC systems and retrofit projects.
The drive is optimized for fans, pumps and compressors typical of air-handling units, pumps in chiller loops, and auxiliary equipment in HVAC systems. Its built-in HVAC-focused control features simplify startup and operation, enabling smooth operation in both new installations and retrofits while maintaining thermal comfort and energy efficiency.
The ACH580-01-062A-4 provides energy-efficient operation, reduced commissioning time, and remote monitoring options that lower maintenance costs and downtime. The robust wall-mount design and configurable IP ratings support long-term reliability in busy facilities, contributing to a favorable return on investment through lower energy use and easier serviceability.
