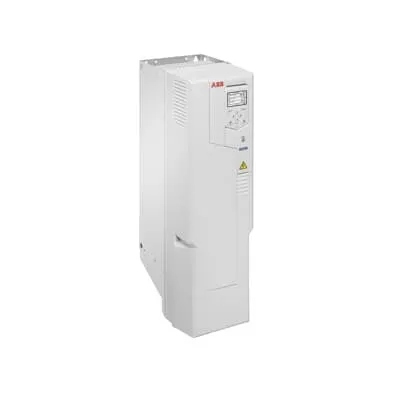

ABB ACH580-01-088A-4 HVAC Drive - IP21/IP55 Enclosure
Part Number: 3AUA0000080527
Quick Summary
ABB ACH580-01-088A-4 HVAC drive controls fans and pumps in commercial HVAC systems. It simplifies startup, reduces energy waste, and shortens commissioning time, addressing common HVAC control challenges. Designed for CE compliance with IP21 standard enclosures, with IP55 flange-mount options to meet harsher environments. This compact, wall-mounted drive integrates advanced control features to deliver reliable operation, saving energy while supporting scalable system designs and easier maintenance for engineers and procurement teams.
Product Information
Extended Description
3AUA0000080527 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC-specific control panel with primary settings and help assistants. Benefit: speeds up startup, reduces commissioning errors, and lowers on-site engineering time. Application: suitable for fans, pumps, and compressors in HVAC systems. Feature: Energy-saving control algorithms and adjustable speed curves. Benefit: improves overall efficiency and reduces operating costs through demand-driven performance. Application: variable-air-volume systems and energy-conscious retrofits. Feature: IP21 enclosure with optional IP55 and flange mounting. Benefit: installation flexibility for wall-mounted or enclosure-mounted layouts in machinery rooms or exposed environments. Application: retrofits and new builds in commercial buildings and industrial HVAC. Feature: Optional Bluetooth connectivity for commissioning and monitoring. Benefit: enables remote setup, diagnostics, and maintenance, reducing site visits. Application: field service, remote startups, and ongoing performance verification. Feature: 45 kW, 88 A, 400 V rating with compact footprint. Benefit: high power density supports a wide range of equipment while minimizing cabinet space. Application: motors driving fans, pumps, and compressors in HVAC applications.
Get a Quick Quote for a ABB 3AUA0000080527
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000080527?
Enquire Now
FAQs
For wall-mounted HVAC applications, plan for a dedicated enclosure with IP21 protection and consider the IP55 option for harsher environments. Ensure adequate clearance for cooling and access to the control panel, and verify compatible wiring to 400 V systems. The device is designed for straightforward mounting and quick integration with fans, pumps, and compressors.
Key performance specs include a 45 kW power rating, 88 A current, and 400 V input. It supports HVAC loads such as fans, pumps, and compressors, with built-in control features tailored to HVAC tasks. Optional Bluetooth enables remote commissioning and monitoring, while IP21/IP55 enclosures provide installation flexibility in varying environments.
Yes. The compact wall-mounted design and IP-rated enclosures simplify retrofits in existing air handling units and chillers. Built-in HVAC-specific settings streamline startup, while the ability to retrofit with IP55 mounting expands applicability in less protected spaces. Bluetooth-enabled commissioning also reduces field labor during upgrades.
The ACH580-01-088A-4 is CE certified and available with IP21 enclosures by default, with IP55 flange-mount options for higher protection. This combination supports compliance for European installations and robust operation in environments with dust, humidity, or limited protection within mechanical rooms.
Adopting the ACH580-01-088A-4 can reduce commissioning time, energy consumption, and maintenance visits through reliable operation and remote monitoring via Bluetooth. The compact form factor eases installation in tight spaces, while built-in HVAC controls reduce external hardware needs, delivering faster payback and lower total cost of ownership for HVAC projects.
