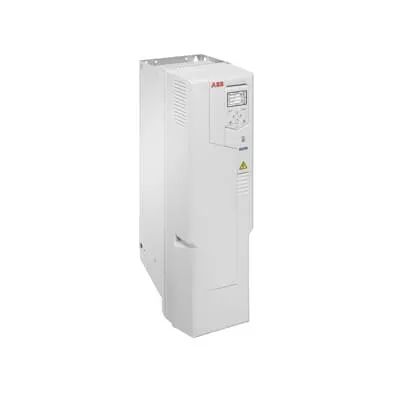

ABB ACH580-01-106A-4 LV AC wall-mount drive - IP21
Part Number: 3AUA0000080528
Quick Summary
ACH580-01-106A-4 LV AC drive provides precise speed control for HVAC fans, pumps and compressors. Engineers often face lengthy wiring, setup bottlenecks, and commissioning delays when integrating drives across multiple HVAC components. This wall-mounted solution uses an IP21 enclosure with optional IP55 and flange mounts, and a dedicated HVAC control panel for streamlined startup. Built-in features and Bluetooth commissioning option help shorten project timelines and improve maintenance visibility, delivering measurable energy efficiency and system reliability.
Product Information
Extended Description
3AUA0000080528 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC control supports fans, pumps and compressors, delivering consistent operation and simplified wiring, which translates to faster commissioning and reduced on-site errors. The dedicated HVAC control panel includes an HVAC-specific primary settings menu and help assistants, cutting startup time and lowering commissioning costs while improving operator confidence during initial run-up. Bluetooth capability (optional) enables remote commissioning and monitoring, reducing site visits and enabling proactive maintenance planning for critical uptime in commercial buildings. The unit comes in an IP21 enclosure for standard wall mounting, with IP55 and flange mounting options to fit perimeter or harsh-environment installations, increasing installation flexibility and protecting the drive in a variety of layouts. Electrical specs, including 55 kW nominal power, 106 A at 400 V and UL Pld 75 Hp / 96 A, help ensure precise motor matching and compliance with local electrical codes. This ABB ACH580 family drive is designed to reduce installation time while delivering energy-efficient operation for HVAC applications such as air handling units and chillers.
Get a Quick Quote for a ABB 3AUA0000080528
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000080528?
Enquire Now
FAQs
The ACH580-01-106A-4 is sized for 55 kW nominal power with 106 A at 400 V, designed to drive HVAC components such as fans, pumps and compressors. It supports wall-mount installation with an IP21 enclosure and offers optional IP55 and flange mounting for varied HVAC layouts, including air handling units and chillers. This enables precise motor control while simplifying integration with existing equipment and control architectures.
Installation benefits center on an integrated HVAC control panel with a dedicated primary settings menu and help assistants that shorten startup and commissioning. The built-in features reduce external control hardware and wiring complexity, while the optional Bluetooth capability enables remote commissioning and monitoring, lowering on-site labor and accelerating project timelines without sacrificing reliability.
Yes. The ACH580-01-106A-4 is purpose-built for HVAC systems, delivering smooth, energy-efficient operation across fans, pumps and compressors. Its IP21 enclosure supports standard wall mounting, with IP55 and flange options for harsher environments. The drive’s built-in HVAC controls and remote commissioning capabilities help maintain uptime and optimize performance in mission-critical applications such as air handling units and chillers.
The ACH580-01-106A-4 specifies a 55 kW power rating with 106 A at 400 V and UL Pld 75 Hp, 96 A for the referenced variant, indicating compliance with UL electrical performance expectations. It ships with an IP21 enclosure by default and offers IP55 and flange-mounting options for broader environmental suitability, aligning with standard global HVAC integration practices.
The drive reduces installation time through built-in HVAC control features and a dedicated settings interface, while enabling remote Bluetooth commissioning to minimize field service visits. These capabilities lead to faster project delivery, lower labor costs, and improved system reliability, contributing to shorter payback periods and better ongoing energy management for HVAC assets.
