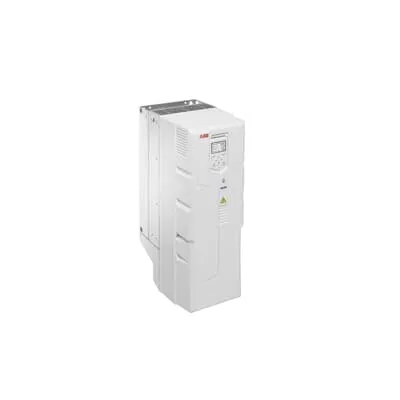

ABB 3AUA0000080529 HVAC Drive - ACH580-01-145A-4
Part Number: 3AUA0000080529
Quick Summary
ACH580 HVAC drive is a wall-mounted LV AC controller that efficiently controls fans, pumps, and compressors in HVAC systems. Installing and commissioning drives can be time-consuming, leading to delays and higher labor costs in building projects. UL listed for electrical safety, the drive is offered with IP21 enclosure and optional IP55 variants, plus Bluetooth connectivity for remote setup. Designed to meet stringent industry standards for safety and reliability, it supports HVAC-specific control of air handling units, chillers, and energy recovery systems. These features enable energy-efficient operation, quick startups, and reduced lifecycle costs, making it a practical choice for commercial and light-industrial HVAC installations.
Product Information
Extended Description
3AUA0000080529 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC-specific control with a dedicated primary settings menu and help assistants delivers faster startup and commissioning. This reduces on-site programming time and minimizes operator error, translating into lower installation costs and quicker ROI for air handling, fans, and pump packages. The drive integrates control of fans, pumps, and compressors, enabling optimized sequencing and reduced energy consumption across HVAC loops. Wall-mounted installation with an IP21 enclosure (IP55 option) simplifies mounting in restricted spaces while maintaining rugged protection for indoor environments. Bluetooth-ready capability enables remote commissioning and monitoring, cutting on-site visits and accelerating fault diagnosis. UL listing provides electrical safety assurance, while the 75 kW IEC rating at 400 V and UL Pld 100 Hp support mid-size HVAC loads with reliable performance. The intuitive control panel speeds service interventions and improves technician productivity, aligning with energy-efficiency programs and maintenance strategies in commercial buildings.
Get a Quick Quote for a ABB 3AUA0000080529
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000080529?
Enquire Now
FAQs
Yes. The ACH580 is designed for wall-mounted LV HVAC control with an IP21 enclosure by default, and an IP55 option is available for more demanding environments. Its 75 kW IEC rating at 400 V and 145 A current support mid-sized fans, pumps and compressors, making it ideal for air handling units, chillers and other HVAC equipment.
Key specs include IEC power of 75 kW, current 145 A at 400 V, and UL-listed Pld 100 Hp. These ratings enable robust control of mid-size HVAC loads, enabling precise speed control of motors, energy savings through adjustable drive curves, and reliable operation in typical commercial building environments.
Applications include air handling units, cooling towers, fans, pumps, and compressors in commercial and light-industrial facilities. The drive’s HVAC-specific control menu and built-in logic support sequencing, economization and energy optimization for these components, helping meet comfort and efficiency targets.
The device is UL-listed for electrical safety and delivered with an IP21 enclosure, with an IP55 option available. These certifications and ratings provide assurance for safe installation and operation within typical indoor HVAC environments and more challenging spaces when IP55 is chosen.
The built-in HVAC controls, intuitive startup menus, and optional Bluetooth remote commissioning reduce installation time and site visits, speeding time-to-occupancy. Energy-efficient operation and simplified maintenance lower lifecycle costs, while reliable UL-listed protection and robust enclosure variants support long-term performance and reduced downtime.
