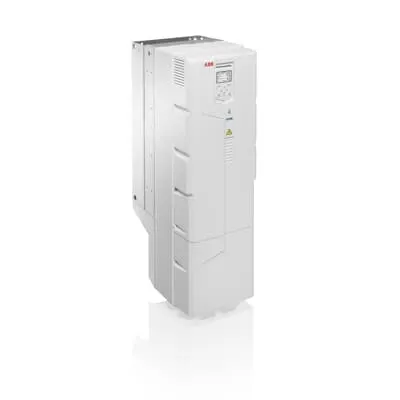

ABB ACH580-01-293A-4 HVAC Drive - IP21/IP55 Enclosure
Part Number: 3AUA0000080533
Quick Summary
ABB ACH580-01-293A-4 HVAC drive is a wall-mounted, low-voltage controller designed to optimize fans, pumps and compressors in commercial and light industrial HVAC systems. It helps mitigate commissioning delays and startup risk by delivering built-in control features and an intuitive setup. The drive comes standard with an IP21 enclosure and offers IP55 and flange-mount options, with UL listing for reliable, safety-conscious operation. Bluetooth connectivity enables remote commissioning and monitoring, reducing on-site visits and facilitating commissioning from a distance. By combining ease of installation with precise HVAC control, it supports energy-efficient operation and predictable lifecycle performance for building systems and energy planners alike.
Product Information
Extended Description
3AUA0000080533 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Built-in HVAC-specific control logic reduces commissioning time and startup risk, delivering reliable control for fans, pumps, and compressors in air handling units and chillers. This translates to faster project timelines and lower upfront installation costs while maintaining precise temperature and pressure setpoints in modern buildings. Application: air handling units, rooftop units, and variable-air-volume systems. Feature → Business Impact → Application: Integrated panel and intuitive primary settings menu streamline startup and day-to-day operation, cutting operator training time and minimizing misconfigurations. This supports facilities teams managing multiple AHUs and rooftop units across campuses. Feature → Business Impact → Application: Bluetooth-enabled commissioning and monitoring enables remote fault finding and parameter tweaks, reducing on-site service windows and travel costs, ideal for remote facilities or multi-site deployments. Feature → Business Impact → Application: Built-in energy-saving capabilities and optimized motor parameters improve overall HVAC energy efficiency, delivering measurable reductions in operating costs for commercial buildings. Feature → Business Impact → Application: IP21 standard enclosure with IP55 and flange-mount options provides flexible installation in constrained spaces and harsher environments, ensuring compatibility with existing electrical infrastructure and ease of retrofits. Feature → Business Impact → Application: UL-listed safety compliance and compliance alignment with IEC standards reduces supplier risk and supports procurement criteria in regulated markets.
Get a Quick Quote for a ABB 3AUA0000080533
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000080533?
Enquire Now
FAQs
The ACH580-01-293A-4 is a wall-mounted LV drive designed for HVAC applications and supports integration with fan, pump, and compressor controls. It features an intuitive control panel, is available in IP21 with IP55 options, and supports standard wiring practices, enabling straightforward retrofit into existing HVAC control schemes while minimizing rewiring and downtime.
This drive includes HVAC-optimized control algorithms and motor parameter settings that optimize speed and torque, reducing throttling losses and startup surges. By delivering smooth ramping, precise flow control, and automatic motor protection, it lowers energy consumption in fans and pumps, contributing to lower operating costs and improved building energy performance.
Yes. The ACH580-01-293A-4 is purpose-built for HVAC duty cycles, including air handling units, fans, pumps, and compressors in chillers. Its built-in HVAC logic and compact wall-mount form factor simplify installation in AHUs and similar equipment, while the IP rated enclosures provide reliability in typical building environments.
The drive offers IP21 standard enclosure with IP55 options, supporting safe operation in varied environments. It is UL-listed for HVAC drive applications and adheres to applicable IEC controls standards, helping buyers meet regulatory and procurement requirements in many regions and facilitating smoother vendor qualification.
The ACH580-01-293A-4 minimizes maintenance and service visits through reliable, integrated control and fault-tolerant operation. The built-in features shorten commissioning, reduce wiring complexity, and enable remote monitoring via Bluetooth, delivering faster time-to-benefit and lower lifecycle costs through improved energy efficiency and reduced on-site engineering time.
