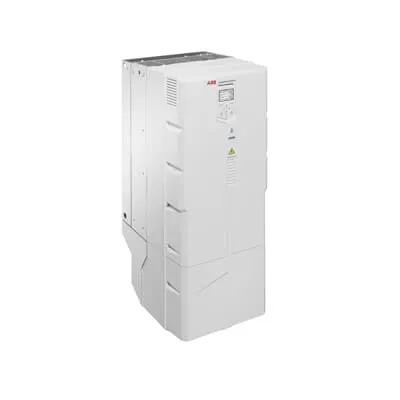

ABB ACH580-01-363A-4 HVAC Drive - Wall-Mount IP21
Part Number: 3AUA0000080534
Quick Summary
ABB ACH580-01-363A-4 HVAC drive delivers precise speed control for fans, pumps and compressors in HVAC systems. Engineers struggle with lengthy commissioning and variable airflow when integrating new drives into existing building automation. Key certifications include UL-listed Pld 300 Hp (361 A) and an IP21 enclosure, with IP55 and flange-mount options available for harsher environments. Built-in HVAC control features support energy-efficient operation and faster startup, while Bluetooth connectivity enables remote commissioning and monitoring to reduce site visits and maintenance overhead.
Product Information
Extended Description
3AUA0000080534 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC control features streamline installation and startup, reducing external cabinet needs and wiring. This translates into shorter commissioning cycles and lower project risk, particularly for air handling units and chiller packs where precise motor control matters. An intuitive control panel with HVAC-specific primary settings and help assistants speeds commissioning and reduces operator training time, enabling faster system bring-up in commercial buildings, data centers, or manufacturing facilities. Optional Bluetooth connectivity enables commissioning and monitoring from a distance, cutting on-site visits and enabling quicker fault diagnosis and proactive maintenance. The IP21 enclosure supports easy wall-mount installation, with IP55 and flange mounting options for environments that demand enhanced protection or alternative mechanical configurations. With a 200 kW, 363 A, 400 V rating, this drive reliably handles high-load HVAC tasks while minimizing energy waste and wear. The solution integrates seamlessly with building management systems, delivering measurable improvements in efficiency and reliability for large-scale AHUs, chillers, and rooftop units.
Get a Quick Quote for a ABB 3AUA0000080534
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000080534?
Enquire Now
FAQs
Yes. The ACH580-01-363A-4 is designed for three-phase HVAC motors up to 200 kW at 400 V and 363 A, and it integrates with typical building automation systems. Its built-in HVAC control features simplify wiring and sequencing for fans, pumps and compressors, while remote monitoring via Bluetooth is available for facilities teams seeking reduced site visits.
Model ACH580-01-363A-4 delivers 200 kW (Pn), 363 A current, at 400 V three-phase. It is housed in an IP21 wall-mount enclosure, with UL-listed Pld 300 Hp capability and availability of IP55 and flange-mount options for alternative install environments.
Ideal for air handling units, chillers, rooftop units, and large fans or pumps in commercial and industrial HVAC systems. The ACH580-01-363A-4 provides precise motor control, energy-efficient operation, and simplified startup, making it well-suited for applications requiring stable airflow, reliable operation, and reduced energy consumption.
The drive ships with an IP21 wall-mount enclosure and UL-listed certification for Pld 300 Hp (361 A). For harsher environments or different installation needs, IP55 and flange mounting options are available, enabling installation in mechanical rooms or areas with higher protection requirements.
By reducing commissioning time through built-in HVAC controls and an intuitive interface, the drive lowers labor costs and project risk. Remote monitoring via Bluetooth minimizes on-site visits, while energy-efficient operation reduces ongoing energy costs, delivering a favorable return on investment for large-scale HVAC projects.
