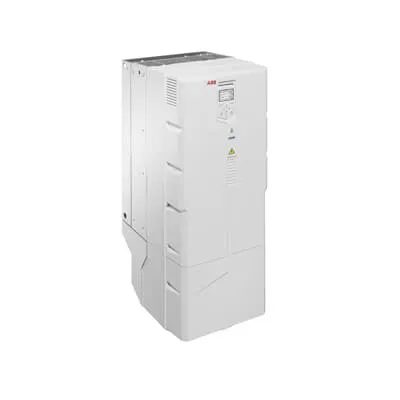

ABB ACH580-01-430A-4 HVAC Drive - IP21/IP55 Enclosure
Part Number: 3AUA0000080535
Quick Summary
ACH580 HVAC drive is a compact wall-mounted controller that optimizes HVAC fans, pumps, and compressors. Engineers often face lengthy commissioning and variable performance across installations. This drive is UL-listed and available with IP21 enclosure, with IP55 and flange-mount options to fit different install environments. By combining HVAC-specific settings with intuitive startup tooling, it delivers faster deployment and measurable energy savings for building operations. The built-in features simplify control logic, reduce wiring complexity, and support reliable operation under mission-critical conditions, helping maintenance teams meet uptime targets. For purchasers, this means predictable performance, easier compliance checks, and lower total cost of ownership over the system lifecycle.
Product Information
Extended Description
3AUA0000080535 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC control features for fans, pumps, and compressors reduce the need for external controllers, speeding up installation and commissioning. The business impact is clearer sequencing, fewer wiring errors, and improved energy efficiency across HVAC loops. In typical AHU or chiller installations, the drive handles start/stop logic, fan speed control, and pump modulation to maintain setpoints with minimal oversight. An intuitive control panel with HVAC-specific primary settings and help assistants shortens startup time. This translates to faster project handovers, reduced field service time, and improved operator confidence during handoff. Industry context: building automation projects with diverse site crews benefit from standardized menus and remote guidance. Bluetooth connectivity enables remote commissioning and monitoring, reducing technician site visits and enabling rapid troubleshooting. Combined with built-in diagnostics, maintenance teams can preempt faults and plan preventive maintenance more effectively. The result is less downtime and longer mean time between failures in critical HVAC loops. IP21 enclosure is standard for on-wall installation, with IP55 and flange mounting units available for harsher environments or exposed installations. This flexibility reduces retrofit risk and allows compliant installations without enclosure changes. When paired with UL-listed safety features, it also helps meet enterprise and facility requirements. Electrical performance aligns with typical HVAC drive requirements: 400 V supply, 430 A current, and a 250 kW power rating. These specs enable robust motor control for large fans and pumps while preserving motor protection and smooth acceleration. In procurement terms, the device offers a compact solution with lifecycle advantages, from installation through maintenance.
Get a Quick Quote for a ABB 3AUA0000080535
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000080535?
Enquire Now
FAQs
The ACH580-01-430A-4 is designed for wall-mounted installation with a standard IP21 enclosure and optional IP55 or flange mounting configurations. This enables both indoor wall spaces and more rugged environments, reducing enclosure and mounting constraints while maintaining easy access for maintenance.
The drive offers a 250 kW (Pn) power rating, 430 A current, and 400 V supply, making it suitable for medium to large HVAC motors such as fans and pumps. It is UL-listed, which supports safety compliance in critical facilities and reduces risk during audits.
Yes. The ACH580-01-430A-4 includes built-in HVAC control features tailored for fans, pumps, and compressors, delivering smooth modulation, energy efficiency, and reliable sequencing in AHUs, air handlers, and chillers.
Key certifications include UL listing for electrical safety and IP ratings (IP21 as standard with IP55 option). These specifications support safe operation in typical industrial and building automation environments.
The drive reduces commissioning time with HVAC-specific settings and help assistants, lowers energy consumption through precise speed control, and enables remote diagnostics via Bluetooth. Together, these factors shorten project timelines and lower total cost of ownership over the system lifecycle.
