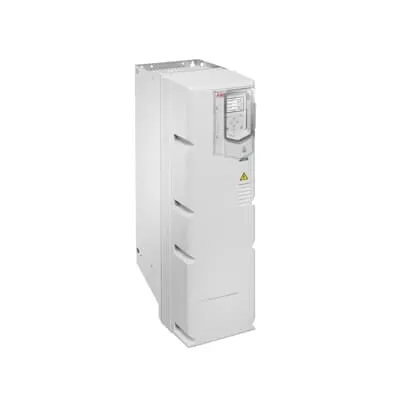

ABB ACH580-01-088A-4+B056 HVAC Drive - IP21 Wall-Mount
Part Number: 3AUA0000083602
Quick Summary
ACH580 HVAC drive is a wall-mounted LV AC drive that precisely controls fans, pumps and compressors in HVAC systems. Engineers often contend with complex commissioning and lengthy installation times that delay project startups. The unit offers IP21 enclosure with optional IP55 and flange mounting variants, and it supports UL-rated configurations, making it suitable for demanding facilities. With HVAC-specific primary settings, built-in control features, and a Bluetooth option for remote commissioning, this drive delivers energy-efficient, reliable performance while reducing on-site labor and risk.
Product Information
Extended Description
3AUA0000083602 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC control features enable precise speed regulation of fans, pumps and compressors, delivering tangible energy savings and improved system stability. This translates to lower operating costs and longer equipment life when applied to air handling units, chillers, and packaged rooftop systems. The intuitive HVAC-specific primary settings menu and help assistants simplify startup, commissioning and ongoing operation, reducing commissioning time and minimizing human error during installation. Bluetooth capability supports remote commissioning and monitoring, boosting uptime and enabling service teams to diagnose issues without on-site visits. The wall-mounted IP21 enclosure, with optional IP55 and flange mounting variants, provides installation flexibility and ruggedness for critical environments, while maintaining compact panel space. Compatibility with 400 V IEC networks and UL-rated performance up to 60 Hp ensures safe, standards-compliant operation across commercial and industrial HVAC projects. These features collectively drive faster project delivery and proven ROI.
Get a Quick Quote for a ABB 3AUA0000083602
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000083602?
Enquire Now
FAQs
When installing the ACH580 on a wall, ensure adequate clearance for heat dissipation and access to the control panel. Verify 400 V supply compatibility and appropriate wiring practices per local codes. Choose IP21 enclosure by default, with IP55 option if your environment requires higher ingress protection. Consider space for electrical connections, safety clearances, and the potential for Bluetooth setup for remote commissioning.
The ACH580 integrates built-in HVAC-specific control features that optimize motor speed for fans, pumps and compressors. It uses advanced drive algorithms to optimize energy use and maintain stable process conditions, reducing peak demand and improving system efficiency. Its primary settings menu simplifies configuration for HVAC applications, ensuring reliable operation in air handling units, chillers, and pumps with reduced commissioning time.
Yes. The ACH580-01-088A-4+B056 is designed for HVAC systems including air handling units, chillers, and packaged systems. With 45 kW capacity, 400 V input and built-in HVAC control features, it delivers smooth speed control, energy efficiency, and dependable startup. The option for IP55 and flange mounting further supports diverse installation scenarios common in commercial environments.
The ACH580 offers an IP21 enclosure by default, with IP55 as an available option for harsher environments, improving protection against dust and moisture. It supports UL-rated configurations for safe operation in U.S. facilities handling HVAC equipment. While CE and SIL certifications are not listed in the provided data, the combination of IP ratings and UL considerations provides robust compliance alignment for HVAC applications.
Expect reduced maintenance and faster return on investment due to energy-efficient motor control that optimizes peak loads in fans and pumps, leading to lower energy bills. The device’s built-in HVAC features, intuitive commissioning menus and Bluetooth remote monitoring shorten installation and service visits, improving uptime. Compact wall-mount design also simplifies retrofits and minimizes control panel footprint.
