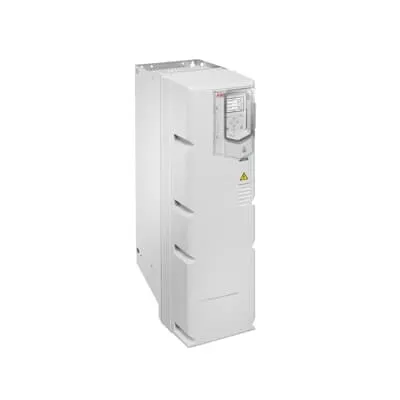

ABB 3AUA0000083603 ACH580 HVAC drive - IP21/IP55
Part Number: 3AUA0000083603
Quick Summary
ACH580 HVAC drive from ABB provides precise speed control for HVAC fans, pumps and compressors. Engineers often wrestle with lengthy commissioning, complex startup sequences, and inconsistent system performance when integrating variable-speed drives into modern buildings. This drive family supports IP21 standard enclosures, with IP55 and flange-mount options, and UL ratings up to 75 Hp (96 A) at 400 V, ensuring robust protection and scalable deployments. Built-in HVAC-specific controls and an intuitive primary settings menu simplify startup and operation, while optional Bluetooth enables remote commissioning and monitoring. The result is faster project timelines, lower installation costs, and more predictable energy-efficient operation across commercial and industrial HVAC networks.
Product Information
Extended Description
3AUA0000083603 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC control features provide dedicated logic for fans, pumps, and compressors, delivering energy-efficient operation and reduced system wear. This translates to lower energy consumption and extended equipment life, especially in air-handling units and chillers where steady performance matters. The intuitive control panel with HVAC-specific primary settings and help assistants accelerates commissioning, minimising on-site configuration time and human error, making field startups more reliable. Optional Bluetooth capability enables remote commissioning and monitoring, reducing on-site visits and maintenance costs while improving fault diagnosis and service response in distributed facilities. IP21 standard enclosure supports easy wall mounting, and IP55 or flange-mount options offer installation flexibility in mechanical rooms and rooftop environments. The compact footprint and UL-rated performance up to 75 Hp on 400 V systems simplify procurement and compliance in standard electrical infrastructures. In summary, ACH580 delivers faster deployments, predictable performance, and lower total cost of ownership for modern HVAC networks.
Get a Quick Quote for a ABB 3AUA0000083603
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000083603?
Enquire Now
FAQs
The ACH580 HVAC drive ships with a standard wall-mount IP21 enclosure and offers IP55 and flange-mount options. This provides installation flexibility for equipment rooms, ceilings, or on-wall configurations, helping to reduce installation time and improve space utilization in mechanical spaces.
Key specs include a nominal power of 55 kW, 106 A current, and 400 V supply. The UL rating supports up to 75 Hp with 96 A, aligning with common commercial HVAC power circuits and easing integration with standard electrical infrastructure.
ACH580 provides built-in HVAC control logic tailored for fans, pumps, and compressors, enabling precise speed modulation and reduced throttling losses. This leads to lower energy consumption during part-load operation and better overall system efficiency for air handling units and chillers.
Yes, the ACH580 offers optional Bluetooth capability for remote commissioning and monitoring, allowing technicians to configure settings, diagnose issues, and verify performance from a distance, which reduces on-site visits and speeds up maintenance workflows.
Absolutely. The ACH580 is designed to control HVAC equipment such as fans, pumps, and compressors used in air handling units and chillers, delivering smooth, energy-efficient operation and straightforward integration within building automation systems.
