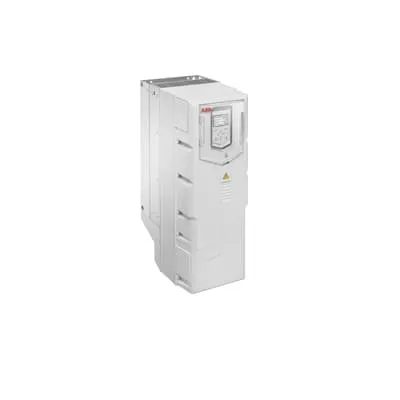

ABB ACH580-01-145A-4+B056 HVAC Drive - UL 100 Hp
Part Number: 3AUA0000083604
Quick Summary
ACH580 HVAC drive is a wall-mounted LV AC controller that optimizes fans, pumps and compressors in HVAC systems. Engineers often face lengthy startup and complex parameter tuning, leading to delays and higher commissioning costs; this drive reduces onboarding time with HVAC-focused menus and contextual guidance. The solution is UL-listed with a Pld 100 Hp rating and comes in an IP21 enclosure, with IP55 and flange mounting options to fit indoor and more demanding environments. Built-in features drive energy-efficient operation, while a dedicated HVAC control panel simplifies startup and ongoing adjustments. Bluetooth remote commissioning and monitoring add further value, enabling service teams to optimize performance without on-site visits. In practice, this translates to lower total cost of ownership and faster ROI for building projects and retrofit programs.
Product Information
Extended Description
3AUA0000083604 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Built-in HVAC control routines directly manage fans, pumps and compressors, reducing external hardware and wiring complexity while improving overall energy efficiency. This enables tighter control of air handling units and chillers, delivering measurable energy savings and streamlined maintenance. Application: mid-sized commercial buildings and data center cooling schemes. Feature → Business Impact → Application: HVAC-focused control panel with a dedicated primary settings menu and help assistants accelerates commissioning, minimizes misconfigurations, and shortens project timelines. Application: new installations and retrofits where rapid startup matters. Feature → Business Impact → Application: Optional Bluetooth capability enables remote commissioning, status monitoring and troubleshooting, reducing fleet-wide service trips and enabling predictive maintenance. Application: remote sites and multi-zone HVAC networks. Feature → Business Impact → Application: IP21 wall-mount enclosure with IP55 option and flange mounting support installation flexibility, protecting electronics in varied spaces and enabling compact layouts. Application: tight mechanical rooms and modular plant designs. Feature → Business Impact → Application: IEC rated performance at 75 kW, 145 A, 400 V with UL Pld 100 Hp rating ensures capability to drive main fans, pumps and compressors efficiently. Application: larger HVAC motors and energy-intensive equipment. Feature → Business Impact → Application: Integrated energy management and reduced setup time lower total cost of ownership and simplify compliance reporting. Application: long-term maintenance planning and lifecycle cost reduction.
Get a Quick Quote for a ABB 3AUA0000083604
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000083604?
Enquire Now
FAQs
Yes. The ACH580-01-145A-4+B056 is designed to integrate with common HVAC motor loads such as fans, pumps and compressors. Its wall-mounted LV drive format and HVAC-focused settings make it straightforward to pair with ABB motors and existing control panels, reducing wiring complexity and enabling smoother system integration across typical AHU and chiller configurations.
Key specs include an IEC power rating of 75 kW, 145 A at 400 V, and a UL-listed Pld rating of 100 Hp. The device is designed for controlled motor operation in HVAC applications, delivering smooth start/stop, torque control, and efficient speed modulation to meet variable load demands while meeting safety and electrical code expectations.
Absolutely. The ACH580-01-145A-4+B056 is tailored for HVAC systems and is well-suited to air handling units, pumps and compressors found in commercial buildings and data centers. Its built-in HVAC control features and intuitive menus support multi-equipment coordination, enabling coordinated speed control to optimize energy use and maintain precise indoor conditions.
The drive features a wall-mounted IP21 enclosure as standard, with optional IP55 and flange mounting variants for harsher environments or constrained installation spaces. It is UL-listed for motor control use, providing reliability and safety assurance in HVAC applications while meeting common regulatory expectations for electrical equipment in commercial settings.
The HVAC-focused settings menu, help assistants, and optional Bluetooth monitoring streamline commissioning, reducing on-site commissioning time and the likelihood of parameter errors. Long-term, the drive supports energy-efficient operation and remote diagnostics, lowering maintenance visits and operational costs, and contributing to a faster, more predictable return on investment for HVAC projects.
