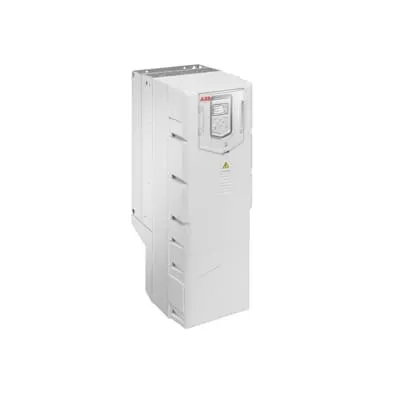

ABB ACH580-01-206A-4+B056 HVAC Drive - IP21 Enclosure
Part Number: 3AUA0000083606
Quick Summary
ABB ACH580-01-206A-4+B056 HVAC drive is a wall-mounted LV AC drive that controls fans, pumps and compressors in HVAC systems. It helps overcome commissioning delays and wiring complexity by delivering a straightforward setup and startup. It is UL-listed with an IP21 enclosure, and IP55 options are available for tougher environments, ensuring reliability in demanding installations. This combination delivers faster project timelines and lower total cost of ownership, while supporting energy-efficient operation and seamless integration with HVAC equipment such as air-handling units and chillers.
Product Information
Extended Description
3AUA0000083606 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC-focused control for fans, pumps and compressors. Benefit: Reduces system complexity and commissioning time, delivering energy-efficient operation in HVAC applications. Application: Air handling units and cooling systems in commercial buildings. The pattern continues with an intuitive control panel and HVAC-specific primary settings menu. Benefit: Accelerates startup, simplifies parameter configuration, and reduces on-site errors. Application: Technician-friendly commissioning across new installs or retrofits. Feature: Optional Bluetooth connectivity for remote commissioning and monitoring. Benefit: Enables off-site setup and ongoing health checks, cutting service visits and downtime. Application: Remote sites or multi-hall facilities with limited access. Feature: Rugged enclosure options including standard IP21 and IP55-flange mounting. Benefit: Flexible installation in tight spaces and harsh environments, saving space and installation costs. Application: Wall-mount installations in centralized mechanical rooms or equipment rooms. Feature: High-performance electrical ratings for HVAC loads (Pn 110 kW, 206 A, 400 V; UL: 180 A, Pld 150 Hp). Benefit: Handles large HVAC motors with reliability and protection, supporting scalable system design. Application: Large fans, pumps and compressors in commercial HVAC plants.
Get a Quick Quote for a ABB 3AUA0000083606
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000083606?
Enquire Now
FAQs
The ACH580 is designed for wall-mounted installation with an IP21 enclosure as standard, and IP55 and flange mounting options are available to suit tighter spaces or harsher environments, enhancing installation flexibility and service access.
It provides built-in HVAC-specific control features for fans, pumps and compressors, enabling precise speed modulation, reduced energy consumption, and easier tuning of HVAC systems, which translates to lower operating costs and improved system stability.
Yes. The drive supports 400 V systems with a rated 110 kW power, 206 A current and UL-rated performance (180 A, Pld 150 Hp), making it suitable for large HVAC motors in modern facilities.
The ACH580-01-206A-4+B056 is UL-listed and offers IP21 standard enclosure with IP55 options, providing protection and safety features aligned with common industrial regulatory expectations for HVAC drives.
Its built-in features reduce installation time, the intuitive HVAC settings menu simplifies startup, and optional Bluetooth enables remote commissioning and monitoring, all contributing to faster project delivery and lower field service costs.
