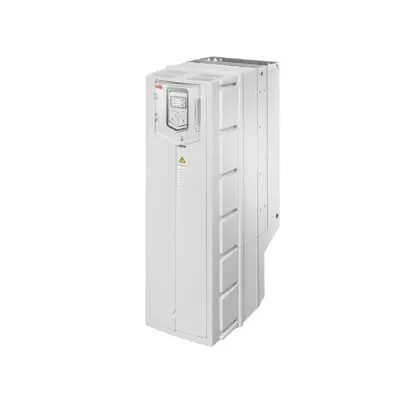

ABB ACH580-01-430A-4+B056 HVAC Drive - IP21 Wall-Mount
Part Number: 3AUA0000083610
Quick Summary
ACH580 HVAC drive is a wall-mounted variable speed controller for HVAC fans, pumps and compressors. Too-long startup and complex commissioning can derail projects; built-in HVAC controls and an intuitive control panel shorten installation time and reduce field labor. Core certifications include IEC-compatible operation at 400 V, UL-listed for up to 350 Hp, CE marking, and IP21 protection; optional IP55 and flange mounting extend environmental reach. Used in building services, it enables energy-efficient control of air-handling units, chillers and large fans, delivering reliable operation and simplified procurement for engineers and procurement teams. In practice, this translates to faster project delivery, lower lifecycle costs, and more consistent HVAC performance.
Product Information
Extended Description
3AUA0000083610 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature → Business Impact → Application: The ACH580 HVAC drive includes HVAC-specific built-in controls and a dedicated primary settings menu with help assistants, which reduces commissioning time and minimizes on-site configuration errors. This translates to quicker startup of fans, pumps and compressors in air-handling units and chillers, improving overall system reliability. Application: ideal for new builds or retrofits in commercial buildings seeking faster implementation and predictable performance. Feature → Business Impact → Application: With IEC 400 V operation and a Pn 250 kW (430 A) rating, the drive supports high-load HVAC equipment, enabling precise motor control for large fans and pumps. This delivers energy-efficient operation and improved process stability. Application: suitable for large ventilation systems and demanding HVAC loads in hospitals, data centers, and factories. Feature → Business Impact → Application: Bluetooth commissioning and remote monitoring (optional) reduce field visits and service costs, enabling off-site diagnostics and faster problem resolution. Application: beneficial for distributed plants and facilities with limited on-site access. Feature → Business Impact → Application: IP21 enclosure with optional IP55 and flange mounting provides flexible installation in varied environments, easing retrofits and new installations. Application: expands compatibility across indoor mechanical spaces and harsher zones while maintaining safety margins. Feature → Business Impact → Application: built-in energy-saving algorithms and diagnostics improve motor efficiency and reduce maintenance downtime. Application: supports long-term ROI through lower energy use and proactive maintenance planning in HVAC systems.
Get a Quick Quote for a ABB 3AUA0000083610
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000083610?
Enquire Now
FAQs
This model is designed for wall-mounted installation with an IP21-rated enclosure. Begin by selecting a clean, sturdy surface, secure the drive, and connect the 400 V supply and motor leads per ABB wiring diagrams. Use the HVAC-specific primary settings menu during commissioning to configure motor parameters for fans, pumps, or compressors, reducing setup time and errors.
Key specs include IEC operation at 400 V, a power rating ofPn 250 kW, and 430 A current. The drive is UL-listed for up to 350 Hp and 414 A, with an IP21 enclosure by default and optional IP55 or flange mounting for harsher environments. These specs support large HVAC loads while maintaining safety and compliance.
Yes. The ACH580 is designed to control fans, pumps, and compressors in HVAC systems, including air-handling units and chillers. Its built-in HVAC-control features and adjustable parameters optimize energy use, reduce startup surges, and improve overall system stability across multiple load types.
The drive carries CE marking and UL listing, confirming compliance with essential safety and performance standards. It provides IP21 protection by default, with optional IP55 and flange-mount configurations to suit different installation environments, ensuring safe operation in indoor mechanical spaces and more demanding applications.
Expect lower total cost of ownership through energy-efficient motor control, reduced commissioning labor, and easier remote monitoring with optional Bluetooth. Built-in diagnostics help predict maintenance needs, minimize unexpected downtime, and support faster repairs, delivering a favorable return on investment in commercial HVAC projects.
