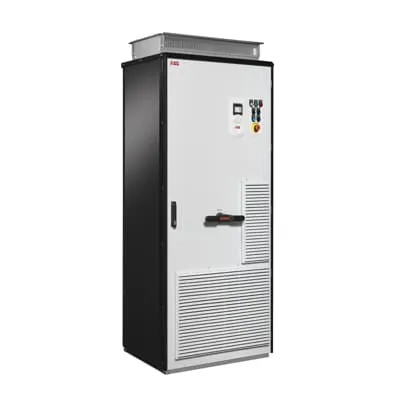

ABB ACS880-07-0105A-3 Cabinet Drive - IP54 Enclosure
Part Number: 3AUA0000120564
Quick Summary
ABB ACS880-07-0105A-3 cabinet drive is a high-performance VFD designed to control 55 kW motors in industrial automation. In harsh environments or tight spaces, complex wiring and lengthy commissioning can derail projects; this cabinet-in-one design minimizes installation steps and accelerates start-up. It carries CE marking and IP54-rated protection, ensuring safety and durability while meeting European standards. ABB’s Order-Based Engineering can add customer-specific features to the standard platform, supporting tailored safety and integration needs. The drive family offers standardized configurations for various applications, from simple line-contactor setups to reliable motor-start prevention. Together, these capabilities translate into improved reliability, reduced downtime, and lower total cost of ownership in manufacturing and processing environments.
Product Information
Extended Description
3AUA0000120564 ABB: The cabinet-built single drives are built to order, meeting your needs regardless of the technical challenges. The drive configuration includes a rectifier, DC link, inverter, fuses, line choke and a main switch, all built into a compact cabinet for easy assembly and commissioning. The ACS880-07 offers a wide ariety of standardized configurations for different application requirements, from line contactors, to preventing unexpected motor starts. If the application requires more, ABB=E2=80=99s Order-Based Engineering services can add special features to the standard product, such as an additional cabinet for customer-specific devices.
Drives up to frame size R11 are based on a compact single module including rectifier and inverter. Larger drives consist of separate rectifier and inverter modules, providing redundancy with parallel connected units.
If one module needs to be disconnected, the drive can continue running at reduced power.The robust design and enclosures up to IP54 make the ACS880-07 suitable for even very harsh environments.
Cabinet-built single drives are delivered as a ready-to-install solution, integrating a rectifier, DC link, inverter, fuses, line choke, and a main switch into a compact cabinet for easy assembly and commissioning. This design reduces field wiring and shortens installation schedules, helping projects stay on track in tight layouts. The all-in-one arrangement supports quick deployment across standard configurations for diverse equipment such as conveyors, pumps, and machine tools. ABB ACS880-07 offers a wide range of standardized configurations to match application requirements, from line-contactors to motor-start protection. This reduces design risk, speeds up procurement, and ensures consistent performance. For installers, predictable configurations simplify commissioning and spare-part stocking. ABB's Order-Based Engineering services can add customer-specific features to the standard product, including additional cabinets for customer devices or tailored protective schemes. This capability supports integration with bespoke control panels while maintaining core safety and reliability. The result is a flexible solution that fits unique automation architectures without compromising uptime. Drives up to frame size R11 are built around a compact single module that includes both rectifier and inverter; larger drives use separate modules, enabling redundancy with parallel connected units. If one module is disconnected, the drive can continue operating at reduced power, preserving process continuity. This fault-tolerant design minimizes unplanned downtime in critical processes. The robust enclosure and protection up to IP54 enable operation in demanding environments, including dusty or humid factory floors. The cabinet design supports easy installation and commissioning in space-constrained areas, while the 55 kW, 105 A rating provides clear performance metrics for project planning. Overall, the configuration promotes reliability, efficiency, and lower total cost of ownership.
Get a Quick Quote for a ABB 3AUA0000120564
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000120564?
Enquire Now
FAQs
This cabinet-built drive combines rectifier, DC link, inverter, fuses, line choke, and main switch in a compact enclosure, reducing field wiring and speeding up commissioning. Ensure proper cabinet ventilation, IP54 protection handling, and space for connectivity to the main controller and motor. ABB’s engineering services can tailor the cabinet to fit your control panel layout while preserving safety features.
The unit targets 55 kW motor control with an input current of 105 A. It is housed in a cabinet with an IP54-rated enclosure and includes integrated rectifier and inverter modules. For larger configurations, separate modules enable redundancy. Compatibility with standard configurations supports straightforward integration into conveyors, pumps, and other automated equipment.
Yes. The drive is designed for demanding automation tasks, offering configurable protection schemes and a robust cabinet enclosure. Its modular architecture and ready-made configurations simplify deployment in pumps, conveyors, fans, and other machinery, delivering reliable motor control, smoother start/stop sequences, and scalable performance for growing production lines.
The cabinet drive carries CE marking, reflecting compliance with European safety and performance standards. It also features an IP54 enclosure, providing protection against dust and moisture in industrial environments. ABB’s engineering options can extend safety features to align with specific SIL-related requirements if needed for your application.
The integrated cabinet design reduces installation time and wiring complexity, lowering upfront labor costs. Redundancy options and fault-tolerant modules minimize unexpected downtime, improving process uptime. With standardized configurations and customization via Order-Based Engineering, maintenance planning becomes predictable, spare parts stocking is streamlined, and total cost of ownership decreases over the drive’s lifecycle.
