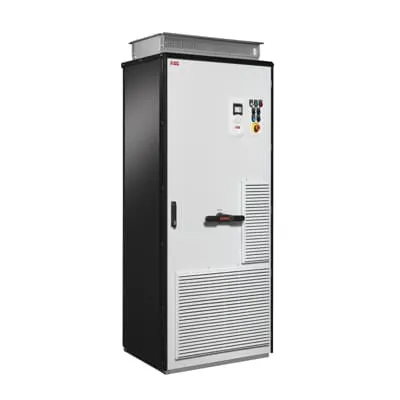

ABB ACS880-07-0169A-3 Drive - IP54 Cabinet-built
Part Number: 3AUA0000120587
Quick Summary
The ABB ACS880-07-0169A-3 Drive is a cabinet-built motor controller for precise, reliable speed control in demanding industrial applications. Engineers often face downtime and integration bottlenecks when sourcing drives from multiple suppliers or fitting complex panels. This model uses a modular architecture with a rectifier, DC link, inverter, fuses, line choke, and a main switch, all in a compact cabinet, simplifying assembly and commissioning. The enclosure protections up to IP54 enhance suitability for harsh environments, while ABB's Order-Based Engineering services can add customer-specific features without compromising delivery. Standard configurations support line contactors and safe motor-start prevention. Overall, the solution delivers predictable performance, improved uptime, and a clear path to scalable, efficient motor control in automation projects.
Product Information
Extended Description
3AUA0000120587 ABB: The cabinet-built single drives are built to order, meeting your needs regardless of the technical challenges. The drive configuration includes a rectifier, DC link, inverter, fuses, line choke and a main switch, all built into a compact cabinet for easy assembly and commissioning. The ACS880-07 offers a wide ariety of standardized configurations for different application requirements, from line contactors, to preventing unexpected motor starts. If the application requires more, ABB=E2=80=99s Order-Based Engineering services can add special features to the standard product, such as an additional cabinet for customer-specific devices.
Drives up to frame size R11 are based on a compact single module including rectifier and inverter. Larger drives consist of separate rectifier and inverter modules, providing redundancy with parallel connected units.
If one module needs to be disconnected, the drive can continue running at reduced power.The robust design and enclosures up to IP54 make the ACS880-07 suitable for even very harsh environments.
Cabinet-built architecture consolidates essential components into a single, compact footprint. Feature → Business Impact → Application: Integration of rectifier, DC link, inverter, fuses, line choke, and main switch reduces wiring errors, speeds up installation, and lowers BOM complexity for packaging lines and conveyors. Modular design enables scalable power and redundancy. When larger drives are needed, separate rectifier and inverter modules provide redundancy; if one module is disconnected, the drive continues at reduced power. This translates to higher uptime in manufacturing lines. IP54 enclosure and robust construction support operation in dusty, humid, and vibrational environments common in metalworking and processing plants. ABB Order-Based Engineering allows customer-specific cabling and cabinet features without delaying delivery, while standard configurations ensure safe starts and reliable operation. The result is faster commissioning, easier maintenance, and a clear path to scalable automation across multiple lines.
Get a Quick Quote for a ABB 3AUA0000120587
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000120587?
Enquire Now
FAQs
Installing the ACS880-07-0169A-3 in a cabinet starts with confirming a compatible panel size and securing the compact enclosure footprint. Follow ABB's guidelines for mounting, wiring the rectifier, DC link, and inverter modules, and connecting the fuses, line choke, and main switch. Commissioning includes software configuration, motor parameterization, and safety interlocks. Ensure proper heat dissipation and protective earth connections.
ACS880-07-0169A-3 delivers 90 kW of continuous power with a 169 A input rating, enabling precise torque control for a variety of motors up to the standard R11 size. The modular architecture uses a built-in rectifier, DC link, and inverter, allowing scalable performance and redundancy. Standard configurations help prevent unwanted motor starts and ensure safe, reliable operation on automated production lines.
Yes, the drive is designed for harsh environments thanks to a cabinet-built construction and IP54-rated enclosure. Its compact, integrated layout reduces space and dust ingress, while robust components withstand temperature and vibration typical in industrial plants. For additional protection, ABB's engineering services can add customer-specific cabling and accessory enclosures without compromising performance.
The drive is designed to meet common industry safety standards and environmental requirements, including IP54 enclosure protection and CE environmental and electrical compliance for safe operation in automated plants. It also supports safety-related features such as safe torque off and start interlock configurations, with ABB’s Order-Based Engineering enabling certified customization for industry-specific regulations.
By standardizing on the ACS880-07-0169A-3, maintenance is simplified thanks to a modular design and common spares, reducing downtime and service costs. Its integrated protections minimize faults, while the cabinet-built configuration lowers installation time and field wiring. Customers typically see improved uptime, predictable performance, and lower total cost of ownership through easier commissioning and long-term support from ABB.
