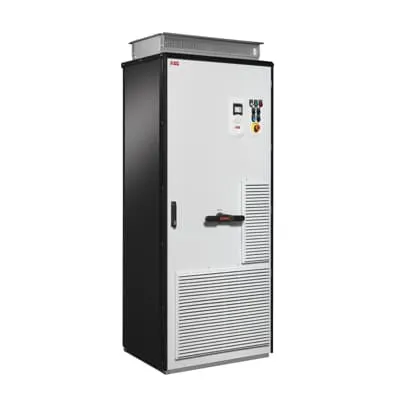

ABB 3AUA0000120590 ACS880-07 Cabinet Drive - IP54
Part Number: 3AUA0000120590
Quick Summary
The ABB ACS880-07 Cabinet Drive is a modular AC drive solution for industrial automation and heavy machinery. Engineers often confront long commissioning times, complex cabinet wiring, and downtime when integrating rectifier, DC link, and inverter into a single panel. IP54 enclosure protection, CE Certification, and robust safety alignment with IEC standards help ensure reliable operation in harsh environments. Order-Based Engineering lets you add customer-specific devices or an extra cabinet, reducing integration risk and accelerating project timelines. In practice, this translates to shorter lead times, lower total cost of ownership, and dependable motor control for demanding automation applications. Its compact cabinet design supports frame sizes up to R11 with modular rectifier and inverter units.
Product Information
Extended Description
3AUA0000120590 ABB: The cabinet-built single drives are built to order, meeting your needs regardless of the technical challenges. The drive configuration includes a rectifier, DC link, inverter, fuses, line choke and a main switch, all built into a compact cabinet for easy assembly and commissioning. The ACS880-07 offers a wide ariety of standardized configurations for different application requirements, from line contactors, to preventing unexpected motor starts. If the application requires more, ABB=E2=80=99s Order-Based Engineering services can add special features to the standard product, such as an additional cabinet for customer-specific devices.
Drives up to frame size R11 are based on a compact single module including rectifier and inverter. Larger drives consist of separate rectifier and inverter modules, providing redundancy with parallel connected units.
If one module needs to be disconnected, the drive can continue running at reduced power.The robust design and enclosures up to IP54 make the ACS880-07 suitable for even very harsh environments.
Cabinet-built integration reduces assembly time and simplifies wiring, delivering faster commissioning and lower labor costs for OEMs and plant operators. This integrated approach minimizes risk by consolidating rectifier, DC link, inverter, fuses, line choke, and main switch into a single, field-serviceable cabinet, enabling quicker upgrades and easier maintenance in harsh environments. IP54 enclosure protection guards electronics from dust and moisture, extending uptime in dusty or wet factories and on outdoor lines. Modular architecture supports redundancy and parallel configurations, which improves availability in conveyors and pumps while letting you scale power without wholesale drive replacement. Frame sizes up to R11 and configurable modules allow you to tailor power and protection levels to exact load profiles. Order-Based Engineering lets you add customer-specific devices, reducing integration time and enabling faster project delivery.
Get a Quick Quote for a ABB 3AUA0000120590
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000120590?
Enquire Now
FAQs
Installation starts with selecting a compliant cabinet and mounting the unit in a protected space. Connect the rectifier, DC link, and inverter modules exactly as shown in ABB's wiring diagram, size fuses and a line choke appropriately, and install a main switch for safe isolation. The cabinet-built design supports panel-friendly wiring and simple commissioning.
Core specs include 160 kW output with 293 A input current, IP54 enclosure protection, and compatibility with modular rectifier and inverter configurations. The drive supports single-module operation up to frame size R11 and can be paralleled for higher power while maintaining drive continuity if a module is disconnected. Current monitoring, fuse protection, line choke impedance, and control interfaces are designed for easy integration with existing PLCs.
Yes. The IP54-rated enclosure protects electronics from dust and splashes, while the modular architecture reduces panel size and wiring complexity. For conveyors and pumps, the ACS880-07 provides reliable motor control, fast start/stop, and scalable power so you can grow linearly without replacing the entire drive system. Its built-in protection features help minimize unplanned downtime in continuous operations.
ABB backs the ACS880-07 with CE marking and IEC-based safety standards, plus IP54 enclosure protection for harsh environments. The design also supports standard diagnostics, safe torque off, and easy regulatory reporting to streamline audits and plant compliance. These features help meet regulatory requirements in process industries and manufacturing facilities, while the Order-Based Engineering option facilitates customer-specific certifications and documentation packaging for audits.
Maintenance benefits come from modular design and robust components; with separate rectifier and inverter modules, you can service or upgrade one module without shutting down the entire drive chain. The result is improved uptime, lower spare-part inventory, and a faster return on investment when upgrading aging processes or expanding line capacity.
